Hey there! As a supplier of Plastic Spool Moulds, I often get asked about the installation steps of these moulds. So, I thought I'd share a detailed guide on how to install a plastic spool mould.
Pre - installation Checks
Before you start the installation process, it's super important to do a thorough check. First off, examine the mould itself. Look for any visible damages like cracks, chips, or rough edges. A damaged mould can lead to poor - quality plastic spools and might even cause issues during the injection - molding process.
Next, check the injection molding machine. Make sure it's clean and free from any debris. The machine should also be in proper working condition. You can run a quick diagnostic test to ensure all the components, such as the heating elements, hydraulic system, and control panel, are functioning correctly.
Also, gather all the necessary tools for the installation. You'll typically need wrenches, screwdrivers, and maybe some lubricants. Having these tools ready will make the installation process go much smoother.
Mounting the Mould on the Machine
The first step in mounting the mould is to align it with the platen of the injection molding machine. The platen is the flat surface where the mould will be attached. You need to make sure the mould is centered properly on the platen. This can be a bit tricky, but using alignment pins or guides can help a lot.
Once the mould is aligned, start by loosely attaching it to the platen using bolts or clamps. Don't tighten them all the way just yet. You want to be able to make some minor adjustments if needed. After attaching the mould, double - check the alignment. You can use a straightedge or a laser alignment tool to ensure everything is in place.
Connecting the Cooling and Heating Systems
Most plastic spool moulds have cooling and heating systems to control the temperature during the injection - molding process. Connect the cooling lines first. These lines are usually made of flexible hoses and are used to circulate coolant through the mould. Make sure the connections are tight to prevent any leaks.
After connecting the cooling lines, it's time to connect the heating system. This could be in the form of heating cartridges or bands. Follow the manufacturer's instructions carefully when connecting these components. Improper connections can lead to uneven heating, which will affect the quality of the plastic spools.
Electrical and Hydraulic Connections
If your plastic spool mould has any electrical components, such as sensors or actuators, you need to connect them to the injection molding machine's electrical system. Make sure to follow the wiring diagram provided by the manufacturer. Incorrect wiring can cause malfunctions or even damage the mould and the machine.
For hydraulic connections, if the mould has any hydraulic cylinders or valves, connect them to the machine's hydraulic system. Check for any signs of leaks after making the connections. Hydraulic fluid leaks can not only be a safety hazard but can also affect the performance of the mould.
Testing the Mould
Once all the connections are made, it's time to test the mould. Start by running a dry cycle on the injection molding machine. This means running the machine without injecting any plastic. Observe the movement of the mould and the operation of all the components. Check for any unusual noises, vibrations, or movements.
If everything looks good during the dry cycle, it's time to do a test injection. Use a small amount of plastic material and run a few injection cycles. Inspect the quality of the plastic spools produced. Look for any defects such as flash, voids, or warping. If you notice any issues, make the necessary adjustments to the mould or the machine settings.
Fine - Tuning the Mould
After the test injection, you may need to fine - tune the mould. This could involve adjusting the temperature settings, the injection pressure, or the cooling time. For example, if the plastic spools are coming out with flash, you may need to increase the clamping force or adjust the mould's parting line.
You might also need to adjust the ejection system. The ejection system is responsible for pushing the finished plastic spools out of the mould. Make sure it's working smoothly and that the spools are ejected cleanly without any damage.
Conclusion
Installing a plastic spool mould is a detailed process that requires careful attention to detail. By following these steps, you can ensure a successful installation and produce high - quality plastic spools.

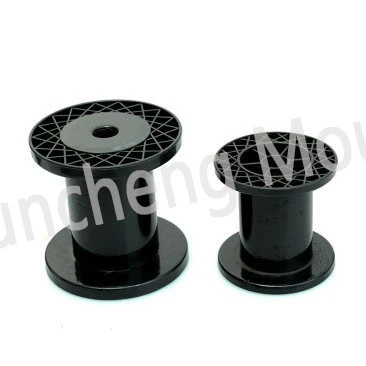

If you're in the market for a Plastic Spool Mould, we've got a great range of options for you. Check out our Plastic Bobbin Coil Mold, Cable Spool Plastic Injection Mold, and Cable Spool Mould.
If you have any questions or are interested in purchasing a mould, don't hesitate to reach out. We're here to help you with all your plastic spool mould needs. Whether you're a small - scale manufacturer or a large industrial company, we can provide the right mould for your production requirements.
