Trolley Case Mould

Your Professional Trolley Case Mould Supplier

Taizhou Guyou Mould and Plastic Co., Ltd. is a company with several years of experience in plastic custom injection molding and tooling manufacturing. Established in 2006 and located in Huangyan, Taizhou City—known as the "Mould Town of China"—we specialize in high-quality plastic molds.
Our main products include plastic household molds, automobile molds, gas-assisted injection molds, plastic thermosetting molds, industrial product molds, and more.

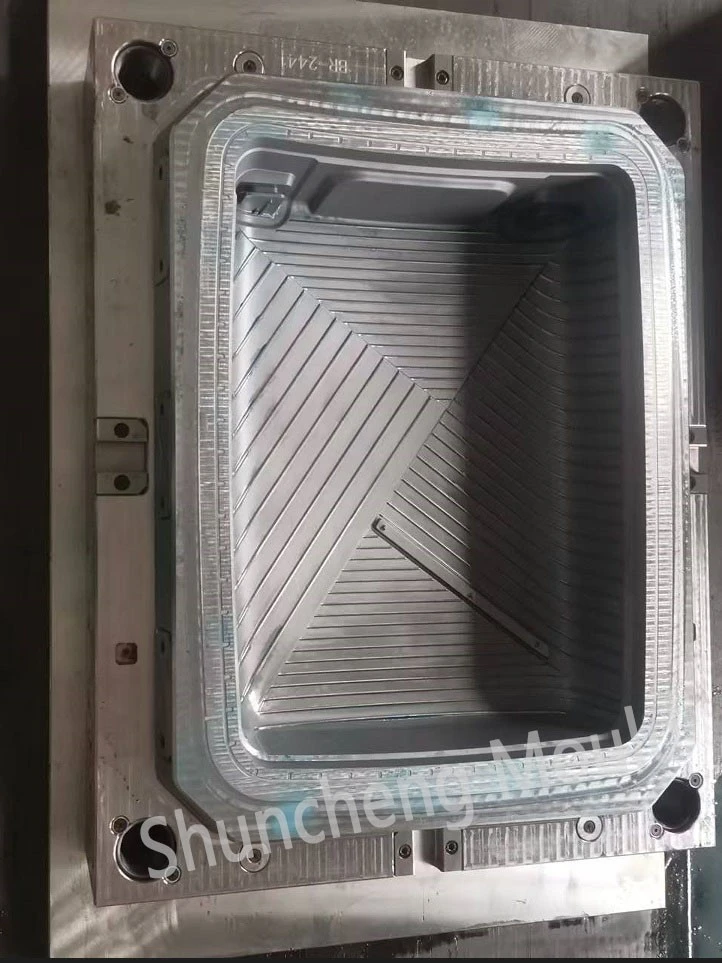

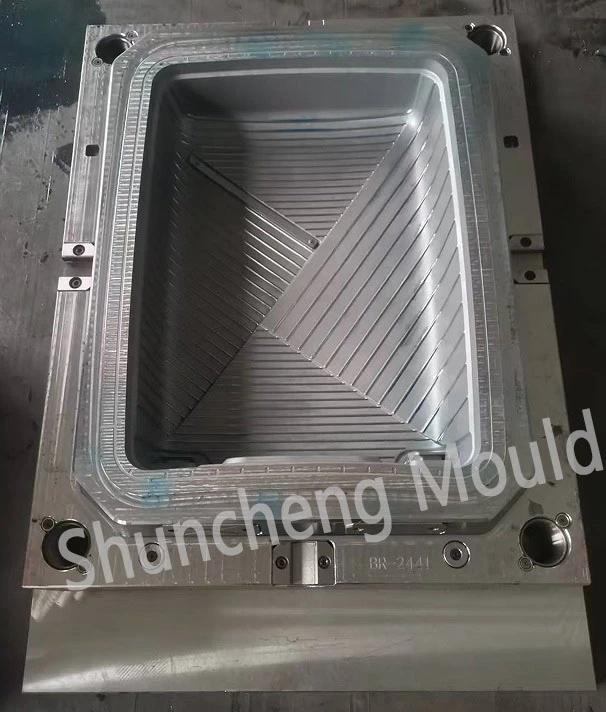

Plastic Trolley Case Mould
Manufacturing technique of plastic trolley case mold The manufacturing method of plastic trolley case mildew mostly includes the following steps: Demand evaluation and product design: Mold...
read more

Why Choose Us

Quality Assurance

We adhere to high quality standards with detailed mold specifications and special requirements, allowing us to provide customers with comprehensive solutions for their injection molding needs.

Comprehensive Solutions

We have expertise in product development, mold design, raw material selection, process optimization, production management, quality control, customer service, and international logistics—offering a full range of services for injection molding projects.

Professional Team

With years of manufacturing experience, we have built an excellent team and established a comprehensive system to meet the diverse needs of our customers.

OEM/ODM Service

Both OEM and ODM services are available. Styles can be customized, and we will advise on the minimum order quantity after discussion.

Mould Name	Plastic Trolley Case Mould
Mold meterial	P20,2738,718H,NAK80,2316,S136,H13,etc
Mold base	Self-mad:LKM:DME
Runner	Cold runner and hot runner
Mold life	50-500 million Shots/ 5-6 years, Even in 10 years in good maintenance
T1 time	45-60 days
Package	Wooden Case
Plastic material	PP PC ABS PET PE PVC PMMA TPR PA6,PA66,ASA,POM,PPS,ABS,ABS+GF,ABS+PC,POM(Derlin)
Warranty period	1 year or 1 million shot times(in this period, if the mold have problem,we will offer the parts or service by free, but not include the problems cased by wrong operation)
Mould Precision	+/-0.01mm
Mould Cavity	Single Cavity, Multi-cavity
Gate Type	Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.
Mould Surface Treatment	EDM, texture, high gloss polishing
Quality System	ISO9001,SGS,TS16949
HS code	8480719090
Origin	Made in China
Installation	Fixed
Cavity	Single/multi
Specification	Depends on customer's requirements
Mold cooling system	Water cooling or Beryllium bronze cooling, etc.
Mold hot treatment	Quencher, nitridation, tempering,etc.

Plastic mold design &test

Testing of plastic moulds:
To a certain extent, we test the mold only to find out the problems existing in the mold, not to solve them. Therefore, the mold test is divided into several steps, including empty running, high pressure holding, high-speed injection and related long-time mold running detection.
We'll test the mould again after polishing,then send customer the final sample and video of mould test to confirm.
Through the accurate analysis of mold design, processing steps and plastic mold structure, we provide a perfect solution for customers.Mold inspection involves many aspects, such as: mold strength, mold flow analysis, mold injection, cooling system, guide system, specifications of various parts, customer machine selection and customer special mold requirements, etc., all of which should be tested according to the mold design standard.

Shipping Mould Details

Before the luggage mold is shipped,we will check whether the opening and closing of the plastic mould is smooth,the water cooling system,the hydraulic oil system and the hot runner system.

The cavity and core are cleaned without iron filings and impurities.

Blow the waterway clean to prevent long-term sea transportation from rusting.

We spray anti-rust agent on the inside of the mold,spray paint on the outside of the mould, and apply anti -rust oil on the thimble.

We will put a nameplate on the mold,it shows the mould name,the year of production and mould information,mold weight and size.

Mould parts are provided free of charge,(convenient for customers to replace).

Mould Maintenance Tips

Routine maintenance of the mould

Refueling of various moving parts such as thimbles,guide posts,and guide sleeves,cleaning the surface of the mold,and dredging accumulated water.

Regular maintenance

Cleaning of exhaust grooves,discharge of trapped air and black spots,correction of damaged and worn parts.

Appearance maintenance

Spray paint on the outside of the mould to prevent rust. fixed mold and movable mould should be coated with anti-rust oil.when the mould is stored,it should be airtight to prevent dust from entering the cavity.

FAQ

Q: How about your quality control?

A: We have professional QC team to control mold quality from raw material,machining to the final mould testing parts,as we realize that quality control is the first priority to run business successfully,and the Quality is the life of enterprise.

Q: What's your lead time?

A: For most mold,normally 45 to 60 working days ( not including Chinese official holidays ) after deposit received and mold drawings approved.

Q: How to approval samples?

A: 1) You can come to our factory to see the mold testing directly.
2) We could send samples by DHL, TNT, Fedex, and we can send mold running video and molding parts dimension inspection report to you by email.

Q: What about your after service?

A: 1 year under normal use procedure,Spare part which is non-man made damaged will be offered for free within one year, and you can contact us at any time if you need help.

We're professional trolley case mould manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy trolley case mould in stock here from our factory. For price consultation, contact us.
