Laundry Basket Mould
Your Professional Laundry Basket Mould Supplier
Taizhou Guyou Mould and Plastic Co., Ltd. is a company with several years of experience in plastic custom injection molding and tooling manufacturing. Established in 2006 and located in Huangyan, Taizhou City—known as the "Mould Town of China"—we specialize in high-quality plastic molds.
Our main products include plastic household molds, automobile molds, gas-assisted injection molds, plastic thermosetting molds, industrial product molds, and more.
-
![Plastic Laundry Basket Mould]()

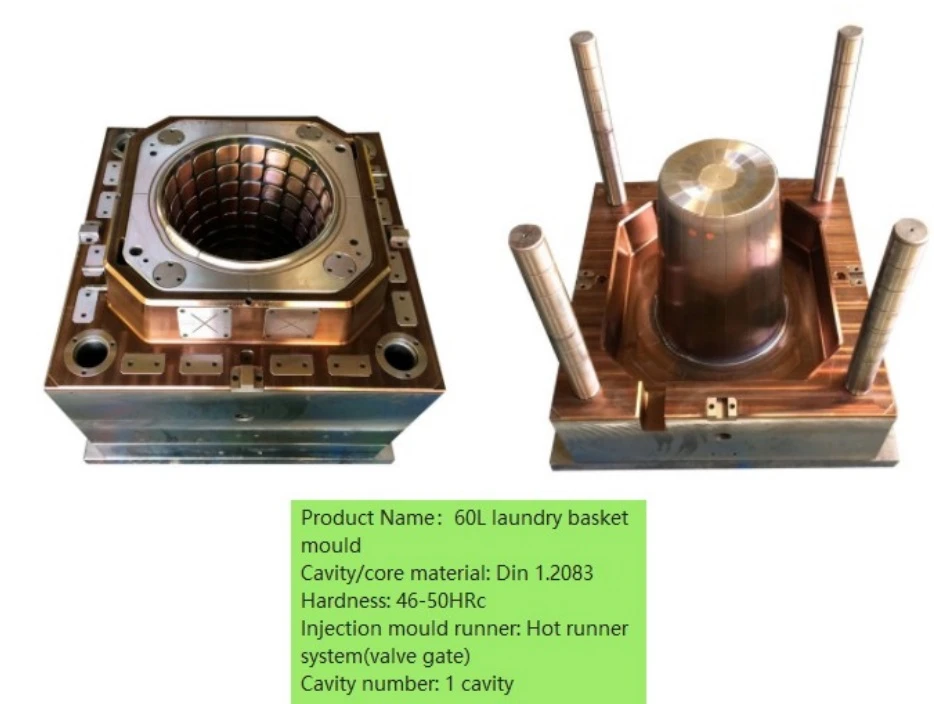

Plastic Laundry Basket MouldProduct Name: 60L plastic laundry basket mould Cavity/core material: Din 1.2083 Hardness: 46-50HRC Injection mould runner: Hot runner system (valve gate) Cavity number: 1 cavityread more
Why Choose Us
Quality Assurance
We adhere to high quality standards with detailed mold specifications and special requirements, allowing us to provide customers with comprehensive solutions for their injection molding needs.
Comprehensive Solutions
We have expertise in product development, mold design, raw material selection, process optimization, production management, quality control, customer service, and international logistics—offering a full range of services for injection molding projects.
Professional Team
With years of manufacturing experience, we have built an excellent team and established a comprehensive system to meet the diverse needs of our customers.
OEM/ODM Service
Both OEM and ODM services are available. Styles can be customized, and we will advise on the minimum order quantity after discussion.
Mould Description
|
Injection Mould Name |
Plastic laundry basket mould |
|
Mould Core and Cavity Metal |
P20 |
|
Injection Machine Size |
800tons |
|
Demould Type |
Automatic |
|
Metal Hardness |
HRC 28-32 |
|
Mould Base |
Self-Made LKM DME |
|
Mould Runner |
Cold Runner &Hot Runner |
|
Cavity Number |
1 Cavity |
|
Cycle Time |
50 Seconds |
|
Tooling Lead Time |
60 Days |
|
Mould Life |
30-300 million shots/ 5-6years.Even in 10 years in good condition. |
|
Mould Surface Treatment |
EDM,Texture Mirror Polishing |
|
The main mould metal material and hardness for your reference,You can choose it for your injection mould. |
|||||||
|
Steel Model |
S50c |
P20 |
718H |
2738H |
H13 |
2344 |
S136 |
|
Hardness(HRC) |
17-22 |
28-32 |
33-38 |
36-40 |
48-50 |
48-52 |
48-52 |
Mould Design
1:We will analyze the feasibility,shrinkage and molding temperature of plastic products.
2 :We will communicate with customers,including details such as weight,style design,size and appearance,stability and wear resistance of plastic products.
3:Design and mold flow analysis are provided free of charge.
Mould Testing
The first time test we do on the mold is to check that it moves smoothly and correctly.
After the laundry basket mold is polished,we will test laundry basket mould again,compare the test samples with the original design.
Then send the final samples and laundry basket mold testing video to customers for confirmation.
Before the laundry basket mold is shipped,we will check whether the opening and closing of the plastic mould is smooth,the water cooling system,the hydraulic oil system and the hot runner system.
The cavity and core are cleaned without iron filings and impurities.
Blow the waterway clean to prevent long-term sea transportation from rusting.
We spray anti-rust agent on the inside of the mold,spray paint on the outside of the mould, and apply anti -rust oil on the thimble.
We will put a nameplate on the mold,it shows the mould name,the year of production and mould information,mold weight and size.
Mould parts are provided free of charge,(convenient for customers to replace).
Mould Maintenance Tips
Routine maintenance of the mould
Refueling of various moving parts such as thimbles,guide posts,and guide sleeves,cleaning the surface of the mold,and dredging accumulated water.
Regular maintenance
Cleaning of exhaust grooves,discharge of trapped air and black spots,correction of damaged and worn parts.
Appearance maintenance
Spray paint on the outside of the mould to prevent rust. fixed mold and movable mould should be coated with anti-rust oil.when the mould is stored,it should be airtight to prevent dust from entering the cavity.
Installation Instructions
2D Design & 3D Mold Structure ;
Mold Flow Analysis if inquiry ;
CNC Milling + High-Speed Carving + EDM;
Mold Assamlby + Mold Polished / Texture ;
Final Testing +Print
30% Free Spare Parts + Wooden Case ;
Packing + Shipping
FAQ
We're professional laundry basket mould manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy laundry basket mould in stock here from our factory. For price consultation, contact us.
