Washing Machine Mould

Your Professional Washing Machine Mould Supplier



Taizhou Guyou Mould and Plastic Co., Ltd. is a company with several years of experience in plastic custom injection molding and tooling manufacturing. Established in 2006 and located in Huangyan, Taizhou City—known as the "Mould Town of China"—we specialize in high-quality plastic molds.
Our main products include plastic household molds, automobile molds, gas-assisted injection molds, plastic thermosetting molds, industrial product molds, and more.





Why Choose Us

Quality Assurance

We adhere to high quality standards with detailed mold specifications and special requirements, allowing us to provide customers with comprehensive solutions for their injection molding needs.

Comprehensive Solutions

We have expertise in product development, mold design, raw material selection, process optimization, production management, quality control, customer service, and international logistics—offering a full range of services for injection molding projects.

Professional Team

With years of manufacturing experience, we have built an excellent team and established a comprehensive system to meet the diverse needs of our customers.

OEM/ODM Service

Both OEM and ODM services are available. Styles can be customized, and we will advise on the minimum order quantity after discussion.



Name

Washing machine mould

Material

PP/ABS

Shaping mode

Plastic Injection Mould

Specification

Depends on customer's requirements

Runner system

Hot/Cold Runner

Cavity

Single/multi

Mould life

50,0000-5,000,000 shots

Packing

Wooden Case



Product Characters

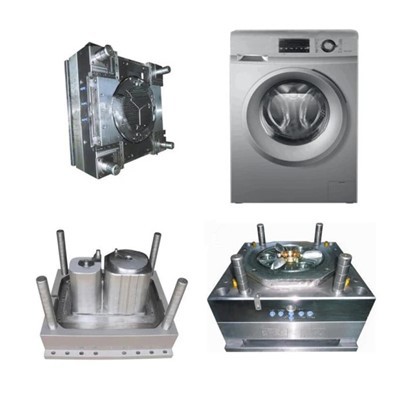

Large size home appliance injection mould, especially for the main body of the washer machine

1

>>

Some parts are quite complex which need the second sliders and second angle lifters for demoulding

2

>>

High competition production which is cost sensitive for both of the mold and plastic shell

3

>>

High quality for the assembly control

4

>>

Good performance for vibration testing with strong structure support

5





Regarding Plastic Material For Washing Machine Transparent Parts
Material ABS

Raw material ABS is good used for washing machine transparent parts, such as control panel, cover, etc. It is composed of acrylamide. Each monomer has different characteristics: Acrylamide has high strength, thermal stability and chemical stability; ebullience has toughness, impact resistance; styrene with easy processing, high finish and high strength. From the morphological point of view, ABS is non-crystalline material. The properties of ABS mainly depend on the ratio of the 3 monomers and the molecular structure in the two phases. Which can be in product design with great flexibility, and thus produced hundreds of different quality of the market ABS material. These different quality materials provide different characteristics, such as from medium to high impact resistances, from low to high finish and high temperature twist characteristics.


ABS has excellent workability, appearance characteristics, low creep and excellent dimensional stability and high impact strength.

productcate-671-659



Injection molding process conditions



Drying ABS material for 80 ~ 90℃ at least 2 hours dry. Material temperature should be less than 0.1%.
Melting temperature 210 ~ 280℃; Recommended temperature，245℃.
Mold temperature 25 ... 70℃. (Mold temperature will affect the plastic parts finish, lower temperature leads to lower finish).
Injection pressure 500 ~ 1000 bar.
Injection speed Medium speed.



Product Uses





Our washing machine moulds are used for the production of various washing machine components, ensuring the quality and functionality of the final products.



Washing Machine Control Panel Seat Mould



Our Service

1.Mould Material Q/C
a) Mould steel checking (hardness,flaw detection)
b) Mould spare parts checking (hardness,size)


2.Mould Making Process Q/C
a) Design checking ( product design,mould design,mould)
b) Mould size checking (according to drawing)
c) Mould testing (check mould working,sample)





Mould Quality Control

1. Mould Material Q/C

- Mould Steel Checking(Hardness, flaw detection)

- Mould Standard Spare Parts Checking(hardness, size, flaw checking)



2. Mould Making Process Q/C

- Design checking (part design, mould design, mould engineering drawing)

- Checking each part of mould's size after machining, according to 2D drawing

- Mould testing(check mould running condition)

Washing Machine Control Panel Seat Mould



Manufacturing Flow of mould

1.Samples/Drawing &Requirement from you

2.Mould design:We will Communicate&Exchange the opinion with you after you place order.

3.Material Purchase:Steel cutting and Mould base tooling.

4.Assembling.

5.Inspection of mould : Following and controlling the tooling processing.

6.Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!

7.Your instruction &confirmation for shipment.

8.Ready made mould before packing.





FAQ





Q: What's your delivery time?

A: 1. The stock samples can be sent to you within 3-5 days by international express.
2. The batch order can be shipped to you in about 25-30 days after order confirmation( by air or by sea).

Q: Is it all right to make customer's own brand name?

A: Yes, we accept OEM.

Q: What are your payment terms?

A: We can acceptT/T,L/C,DP,.

We're professional washing machine mould manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy washing machine mould in stock here from our factory. For price consultation, contact us.
