Plastic Spool Mould
Your Professional Plastic Spool Mould Supplier
Taizhou Guyou Mould and Plastic Co., Ltd. is a company with several years of experience in plastic custom injection molding and tooling manufacturing. Established in 2006 and located in Huangyan, Taizhou City—known as the "Mould Town of China"—we specialize in high-quality plastic molds.
Our main products include plastic household molds, automobile molds, gas-assisted injection molds, plastic thermosetting molds, industrial product molds, and more.
-
![Cable Spool Plastic Injection Mold]()
Cable Spool Plastic Injection MoldThe benefits of plastic injection molds for bobbins by and large consist of the following aspects:read more -

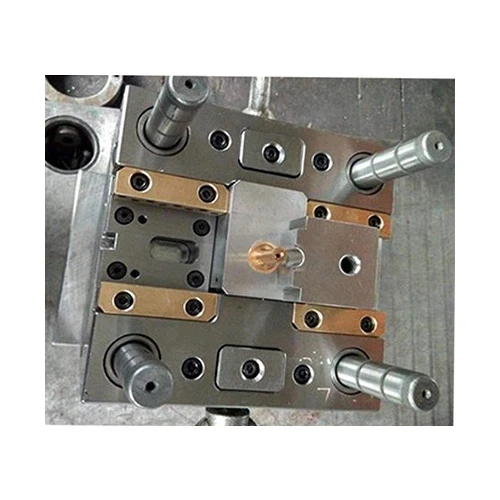

![Injection Plastic Spool Bobbin Mould]()
Injection Plastic Spool Bobbin MouldHigh mechanical strength, good toughness, high tensile and compressive strength. The specific tensile strength is higher than that of metal, and the specific compressive strength is comparable to...read more -
![Plastic Bobbin Coil Mold]()
Plastic Bobbin Coil MoldThe plastic spool is made of special engineering plastic injection molding. It has high product precision, advanced structure, and reinforced side plates with dense ribs. It has the...read more -
![Cable Spool Mould]()
Cable Spool MouldThe production process of spool molds can be divided into the following main steps:read more -
![Plastic Cone Bobbin Mould]()
Why Choose Us
Quality Assurance
We adhere to high quality standards with detailed mold specifications and special requirements, allowing us to provide customers with comprehensive solutions for their injection molding needs.
Comprehensive Solutions
We have expertise in product development, mold design, raw material selection, process optimization, production management, quality control, customer service, and international logistics—offering a full range of services for injection molding projects.
Professional Team
With years of manufacturing experience, we have built an excellent team and established a comprehensive system to meet the diverse needs of our customers.
OEM/ODM Service
Both OEM and ODM services are available. Styles can be customized, and we will advise on the minimum order quantity after discussion.
Plastic Spole Mold / Spool Mold / Reel Mold Maker Kina
Plastisk mold å lage i henhold til eksempel eller 3D tegning
Design eller Produksjon
Strict kvalitetskontroll for kunden
Fast levering med lav pris
|
Injection Plastic Spool Bobbin Mould |
|
|
Mould material |
45#, P20, H13, 718, 2738, NAK80, S136, CENA-1 etc. |
|
Mould base |
LKM, HASCO etc. |
|
Standard Component |
DME, HASCO, JIS etc. |
|
Cavity |
Single/multi |
|
Runner |
Hot/cold |
|
Mould life |
50,0000-5,000,000shots |
|
Design software |
UG, PROE, CAD, SolidWorks etc. |
|
Plastic material |
PP, PC, PE, PS, PU, ABS, PVC, PA, POM, PMMA, PET, PPR etc. |
|
Delivery time |
45--60days |
|
Package |
Wooden Case |
|
Delivery |
By Sea |
|
Specifications |
Depends on customer's requirements |
|
Process Machine |
CNC, High Speed Carve, EDM, Wire Cut, Driller, Grinder, fly cutter etc. |
Specification
|
Enquiry |
According to samples ,or pictures with dimension , or drawings and specific requirements . |
|
Communication |
Plastic mold steel , cavity number , kind of runner , injection data, mold details , delivery time , payment,item and etc |
|
Place an order |
Sign contract & advance payment |
|
Design |
Product and Mold 2D & 3D design based on all of customer’s requirements . And send to customers for inspection .If some structure is not perfect or can not be done on the molding .We will send our suggestion to customers . |
|
Mold Tooling |
Start to Cut steel , CNC machining , EDM , polishing and testing after mold design confirmed . |
|
Mold Processing |
Send plastic mold process schedule with photos update to customers each week . |
|
Mold Testing |
1,Customer come to our factory inspection mold trial if they want. |
|
2, 5-20pcs ( depends on products) qualified samples will be sent to customer for approval |
|
|
Mold Modification |
Modificating the plastic mold according to customer’s feedback . |
|
Packaging |
Once sample approved , Packing mold properly and prepare all of mold spare parts packing with mold together. |
|
Delivery |
According to FOB shipping plastic molds |
Injection Plastic Spool Bobbin Mould Feature and Application
High Durability
Constructed from robust materials that withstand heavy usage and resist wear, ensuring long-lasting performance.
Precision Design
Engineered to produce spools with exact specifications, guaranteeing consistent dimensions for optimal wire quality.
Versatile Compatibility
Suitable for various types of welding wire, accommodating different diameters and materials.
User-Friendly
Simple setup and operation minimize downtime, allowing for efficient production processes.
Enhanced Production Efficiency
Streamlined design improves workflow, reducing production time while maintaining high-quality output.
Components of plastic spool mold
The components of a spool mold are critical elements in the manufacture of plastic spools. A spool mold typically comprises several essential components, including:
Core
When it comes to manufacturing plastic spools, one of the most crucial components is the core. This internal piece of the spool mold is responsible for creating the hollow center where wires and cables are wound. To ensure the spool can hold the correct amount of material and that the winding process is smooth, the core must be designed to replicate the desired shape and dimensions of the spool’s interior.
Cavity
The cavity component shapes the external surface of the plastic spool. It defines the outer dimensions, features, and contours of the spool. The cavity is precisely machined to achieve the desired appearance and functionality of the spool.
Insert
In some cases, additional inserts may be used in the mold to create specific features or details on the spool. Inserts can be removable components that are placed within the mold to form specific parts of the spool, such as flanges, locking mechanisms, or specialized structures.
Cooling System
The cooling system plays a vital role in the overall mold, including the cooling channels or inserts that effectively manage and regulate the temperature throughout the molding process. It helps solidify the molten plastic and maintains steady cooling for optimal part quality.
FAQ
We're professional plastic spool mould manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy plastic spool mould in stock here from our factory. For price consultation, contact us.
