Home Appliance Mould

What is Home Appliance Mould?



Home appliance mould also referred to as "electrical appliance mould," pertains to the production of plastic components for household electric appliances. These moulds encompass both the interior plastic parts and the external housing or casing.In the precision injection molding manufacturing of major appliances, a high-precision home appliance plastic injection mould is indispensable. The home appliance industry necessitates tailor-made plastic injection moulds suitable for insert molding, overmolding, or thin-wall molded products.



Advantages of Home Appliance Mould

Precision and accuracy

Home appliances often have intricate designs and precise specifications. Therefore, the molds used to produce their components must meet strict dimensional accuracy requirements to ensure proper fit and functionality.

Aesthetic standards

Home appliances are visible and often part of the decor in households. As such, the surface finish of molded parts must meet high aesthetic standards to maintain the overall visual appeal of the product.

Durability and longevity

Home appliances are expected to have a long lifespan, so the molds used to manufacture their components must be durable and capable of withstanding the high pressures and temperatures of the injection molding process over numerous production cycles.

Consistency and reliability

Home appliance manufacturers demand consistency and reliability in their production processes to maintain product quality and brand reputation. Injection molds must produce parts with minimal variation and defects to meet these requirements.



First 12 Last

Why Choose Us

01/

Quality assurance
Our plastic moulds company with high quality standards, detailed mould specifications and special requirements, enabling us to offer our customers a comprehensive solution to their injection molding needs.

02/

Comprehensive solution
We have mastered product development, mold design, raw material selection, process optimization, production management, quality control, customer service, international freight forwarding, etc.Can offer our customers a comprehensive solution to their injection molding needs.

03/

Professional team
Through years of experience in the manufacture of injection molding, we have cultivated an excellent team and established a comprehensive system to meet different needs of customers.

04/

Competitive price
We seek to reduce costs for our customers' product development and manufacturing, so as to help customers win in the highly competitive market.

Design Points of Home Appliances Mould


Wall thickness design

The wall thickness of a plastic part is primarily influenced by its external dimensions and materials. However, in the design of plastic products, maintaining a uniform wall thickness is a fundamental principle. Deviations in wall thickness can lead to defects in the appearance of plastic parts, including shrinkage, depressions, deformations, and internal stress, ultimately resulting in cracks.

If the wall thickness is too thin, it can increase the resistance to the flow of molten plastic, impede material flow in the cavity, making it challenging to fill the material. This results in unfilled areas and compromised strength in the plastic parts.

Conversely, excessively thick wall thickness is not advantageous. It can lead to issues such as bubbles, shrinkage, depressions, and deformations in the product's appearance. Moreover, thicker products are heavier, increasing the overall cost. Additionally, thicker wall thickness prolongs molding time due to extended pressure holding and cooling times, resulting in lower production efficiency. However, when strength requires local thickness, a gradual transition between thick and thin is necessary to prevent abrupt changes.

Design of fillet and draft angle

The stress concentration at sharp corners in injection-molded cases can result in brittle failures. Eliminating sharp corners reduces stress concentration, reinforcing rib strength, and enhances the product's ability to withstand external impact. In the design of home appliances, outer arc corners should be maximized, avoiding excessive rounding transitions, typically maintaining an arc size range between 0.3mm and 0.8mm.

Drafting is crucial for smooth demolding during mold production. The draft angle depends on factors such as part size, wall thickness, shrinkage, and mold cavity surface roughness. Controlling the demoulding angle between 20' and 1°30' prevents difficulties in removing plastic parts due to shrinkage during continuous cavity shrinkage.

Reinforcing rib design

Reinforcing ribs enhance the structural strength of plastic parts, reducing the likelihood of warping, plastic consumption, product weight, and production costs without increasing wall thickness. In rib design, strict control of rib position, height, and even distribution helps avoid cold shrinkage at the rib bottom. Maintaining consistency between rib distribution and melt filling direction aids in the injection mold's opening and closing. Adopting an arc transition for reinforcing ribs and rounding corners at the bottom of ribs improves melt fluidity and reduces stress concentration. Typically, reinforcing ribs are around 50% to 70% of the wall thickness, with the r angle at the bottom being approximately 1/8 of the wall thickness.



Basic Classification of Household Appliances Mould



Plastic furniture mould are usually used to manufacture various household appliances, such as chairs, tables, storage cabinets, etc. The structural features of plastic furniture molds include precise design and flexible material selection to accommodate different shapes and functions of furniture. These molds are used in a wide range of applications, covering various fields such as home, office, public places and so on.



Tv mold is an important part of home appliance mold because tvs, as the core product of home entertainment, have high standards of precision and manufacturing process for the molds in terms of their appearance design and structural requirements.



Washing machine mold, refrigerator mold and air conditioner mold, on the other hand, are involved in the manufacture of large home appliances, and need to take into account factors such as product durability, waterproof performance and energy efficiency.



In the entertainment field, recorder, vcr and camcorder molds are required to be able to ensure accurate recording and playback functions of the equipment. The mold design of electric fans, water heaters, vacuum cleaners and other home appliances is concerned with the stability and efficiency of the product.



With the continuous updating of kitchen appliances, molds for air fryer, microwave ovens, induction cookers, dishwashers, range hoods, rice cookers, etc. Have also become part of home appliance molds. These molds need to adapt to the versatility and complexity of kitchen appliances to meet the diverse needs of modern families for kitchen appliances.



Computer mold and printer molds play an important role in modern life and work, these molds also need to take into account factors such as heat dissipation, connectivity and appearance design of the devices.



Material and Technological Innovation of Household Appliances Mould

In terms of materials, the application of new plastic materials is an important innovation in the manufacture of appliance molds. New plastic materials with high strength, high temperature resistance and excellent flame retardant properties are widely used in the manufacture of home appliance molds to meet the higher requirements of modern home appliance products for performance and safety. These materials not only improve the durability of the products, but also make the mold manufacturing process more flexible, better adapted to different design and functional requirements.



Advanced manufacturing technologies are also widely used in the appliance mold industry. The introduction of technologies such as cnc machining, 3d printing, and mold runner optimization have made the mold manufacturing process more precise and efficient. Through these technological innovations, manufacturers are able to design and manufacture high-quality appliance molds more quickly, increase productivity and reduce costs.



The concept of environmental protection and sustainable development has also driven the innovation of appliance mold materials and technologies. The use of biodegradable materials not only helps to reduce environmental impact, but also meets the growing consumer interest in sustainable products. Some manufacturers are introducing recycled materials into mold manufacturing to reduce resource consumption and enhance the sustainability of the industry as a whole.



In the future, we can expect to see more innovations based on artificial intelligence and digital technology, making mold design and manufacturing smarter and more accurate. This will provide manufacturers with more flexibility and bring consumers more advanced and intelligent home appliances.

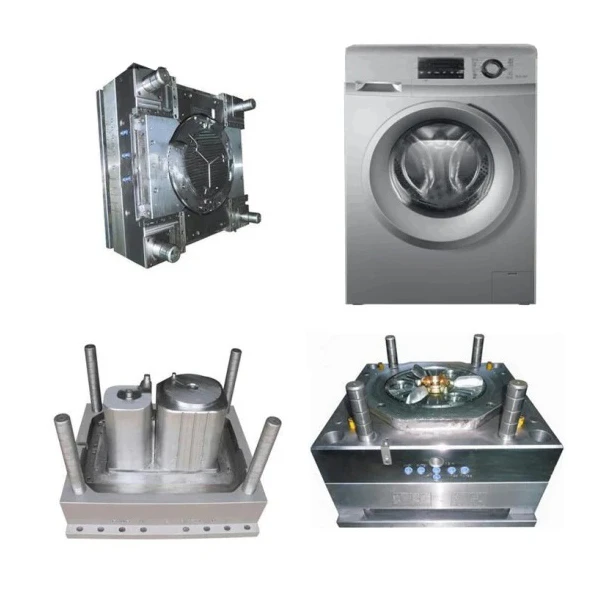

Washing Machine Plastic Injection Mold



Development Trend of Household Appliances Mould Industry





First, the appliance mold industry is undergoing digital transformation. With the continuous development of industrial internet and digital manufacturing technology, the mold manufacturing process will become more intelligent and digital. The application of digital technology will improve production efficiency, reduce costs, and provide more innovative possibilities for mold design and manufacturing. From mold design to production monitoring, digital technology will become an important driving force for the competitiveness of the appliance mold industry.



Secondly, environmental protection and sustainable development has become an important direction for the appliance mold industry. As people's awareness of environmental protection increases, mold manufacturers will pay more attention to the use of environmentally friendly materials, reduce energy consumption, and implement sustainable production processes. The wide application of biodegradable materials and the adoption of recycled materials will push the appliance mold industry toward a more environmentally friendly and sustainable direction.



Third, the rise of the smart home will prompt continuous innovation in the appliance mold industry. With the rapid popularization of smart home products, home appliance molds need to adapt to more diverse and complex product demand. This involves innovations in the mold's structural design, material selection and manufacturing process to meet the high requirements of smart home products for precision, interconnectivity and safety.



Increased demand for customization is also a major development trend in the home appliance mold industry. Consumers' rising demand for personalized and customized products means that mold manufacturers need to be more flexible to meet the specific needs of different customers. Customized production will drive the appliance mold industry to become more flexible, innovative and increase customer satisfaction.

Advanced Manufacturing Technology of Home Appliance Mould

Household appliance products are becoming larger and larger. "one mold with multiple cavities," which is developed to improve production efficiency, also leads to larger and larger household appliance molds. At the same time, the rapid development of home appliances and electronics also brought miniaturization and precision of parts. Some molds require a processing accuracy tolerance of below 1 m.



High-speed cutting technology is widely used in household appliance mould
High-speed machining is generally used for large household appliances cover molds, and its curved surface machining accuracy can reach 0.01mm. After high-speed milling and finishing, the mold surface of the household appliances mould can be used with only a little polishing. This saves a lot of time for grinding and polishing. High-speed machining greatly shortens the molding cycle, thereby improving the market competitiveness of products.



High-speed scanner and mold scanning system for household appliance mould
High-speed scanner and mold scanning system provide many functions from the model or physical scan to processing the desired model, greatly shortening the mold development and manufacturing cycle.

Some rapid scanning systems can be quickly installed in the processing center of the existing cnc milling machine to achieve rapid data acquisition, generate various cnc system processing programs and different formats of cad data automatically, which can be used in mold manufacturing reverse engineering.



Further development of hot runner and gas-assisted molds for home appliance molds
More than 80% of the plastic moulds for sale produced by many plastic mold factories take use of hot runner technology and its effect is pronounced.

Many enterprises in europe and the united states have successfully used gas-assisted technology in tv shells, washing machine shells, and some thick wall plastic parts of the household appliance mold.

Gas-assisted injection molding has the advantages of low injection pressure, small warping deformation, good surface quality, and easy to form products with significant differences in wall thickness, which can significantly reduce the cost on the premise of ensuring product quality.



The Importance and Application of Home Appliance Molds



Home appliance molds play an important role in modern life. They are key tools for manufacturing various household appliances. The design and manufacturing of home appliance molds need to be highly precise and able to meet the requirements of various products. This article will discuss the importance of home appliance molds and their application in home life.



First of all, the design and manufacturing of home appliance molds are crucial to the quality of home appliance products. The accuracy and quality of the mold directly affect the accuracy and performance of the final product. A high-quality mold can ensure the precision and stability of the product, thereby improving its performance and lifespan. Designers of home appliance molds need to consider the appearance, size, materials and functions of the product to meet the needs of users.



Secondly, the application range of home appliance molds is very wide. Almost all household appliances, such as refrigerators, washing machines, tvs, etc., require molds to manufacture their casings, internal parts, and other components. Molds can also be used to manufacture accessories and accessories for home appliances, such as power adapters, control panels, etc. The application of home appliance molds in family life is not limited to electrical appliance manufacturing. They can also be used in home decoration, lighting equipment and other fields.



In addition, the manufacturing process of home appliance molds is also challenging. Mold manufacturing requires highly specialized technology and equipment to ensure the accuracy and quality of the mold. Manufacturing molds involves many links such as material selection, cutting processing, heat treatment, etc. Each link requires experienced technical personnel to control and supervise. The quality and efficiency of mold manufacturing directly affect the production efficiency of the production line and the quality of the product.


FAQ


Q: What is considered a home appliance?

A: The appliances and equipment category includes larger devices that are plugged into electricity mains, namely refrigerators, washing machines, dishwashers, dryers and televisions (appliances like air conditioners, heaters and stoves or ovens are treated seperately).

Q: What means home appliance?

A: A home appliance, also referred to as a domestic appliance, an electric appliance or a household appliance, is a machine which assists in household functions such as cooking, cleaning and food preservation. Home appliance. Numerous home appliances may be used in kitchens.

Q: What materials are commonly used to make plastic injection molds for home appliances?

A: Common materials for plastic injection molds include hardened steel and pre-hardened steel, chosen based on factors like durability, cost, and production volume, such as p20, 718h, 1.2344, 1.2738, s136, nak80, h14, s50c, skd61, etc.

Q: What factors influence the design of a plastic injection mold for home appliances?

A: Factors such as part geometry, material selection, production volume, and quality requirements influence the design of injection molds for home appliances.

Q: What are the key quality requirements for plastic injection molds used in home appliances?

A: Dimensional accuracy is ensured through precise mold design, proper material selection, and rigorous quality control measures during production.

Q: How do you ensure the dimensional accuracy of molded parts for home appliances?

A: Dimensional accuracy is ensured through precise mold design, proper material selection, and rigorous quality control measures during production.

Q: What surface finishes can be achieved with plastic injection molds for home appliances?

A: Surface finishes range from smooth to textured or patterned, depending on customer requirements and mold design capabilities.

Q: What are some common challenges in plastic injection molding for home appliances?

A: Challenges may include warping, sink marks, flash, air traps, and knit lines, which can be addressed through proper mold design and process optimization.

Q: How do you ensure the efficiency of plastic injection molding for home appliances?

A: Efficiency is optimized through factors such as cycle time reduction, material usage optimization, and automation of production processes.

Q: What is the typical lifespan of a plastic injection mold for home appliances?

A: The lifespan depends on factors such as material, production volume, and maintenance but can range from thousands to millions of cycles.

Q: Can you provide prototyping services for plastic injection molds used in home appliances?

A: Yes, we offer prototyping services to help customers test and refine their designs before mold making.

Q: How do you handle intellectual property rights and confidentiality when manufacturing plastic injection molds for home appliances?

A: We prioritize confidentiality and respect intellectual property rights by implementing strict protocols and agreements to safeguard our customers' designs and information.

Q: What maintenance is required for home appliance molds?

A: Regular maintenance includes cleaning, lubrication, and inspection of components to prevent wear and ensure the longevity and performance of the mold.

Q: What is injection molding?

A: Injection molding is a method to obtain molded products by injecting plastic materials molten by heat into a mold, and then cooling and solidifying them. The method is suitable for the mass production of products with complicated shapes, and takes a large part in the area of plastic processing.

Q: What are injection molds used for?

A: Injection moulding is used to make a range of widely used products, including common plastic items like bottle tops as well as remote control casings, syringes and more. It is also commonly used for manufacturing larger items such as car body panels.

Q: Is injection molding only for plastic?

A: Injection moulding can be performed with a host of materials mainly including metals (for which the process is called die-casting), glasses, elastomers, confections, and most commonly thermoplastic and thermosetting polymers.

Q: Why are injection molds so expensive?

A: Designing, creating and assembling injection moulds is a labour-intensive and complex process that takes time and skill to do correctly. Injection mould builders and designers are highly trained specialists that don't come cheap. If you cheap out on this, you might have to pay for the costs later on.

Q: What are the 3 main parts of the injection mold?

A: As we know, most of injection molding machine have 3 main parts: Machine`s frame, injection unit & clamping unit. The machine`s controlling system connect these injection molding machine parts together to an injection machine.

Q: What is the working principle of injection mould?

A: Injection molding is a process in which a thermoplastic polymer is heated above its melting point, resulting in the conversion of the solid polymer to a molten fluid with a reasonably low viscosity. This melt is mechanically forced, i.E.,injected, into a mold in the shape of the desired final object.

Q: What is the structure of injection mold?

A: The basic structure of plastic injection mold is composed of two parts: Fixed mold and movable mold. The fixed mold part is installed on the fixed plate of the injection molding machine,and the movable mold part is installed on the mobile board of the injection molding machine.

We're professional home appliance mould manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy home appliance mould in stock here from our factory. For price consultation, contact us.
