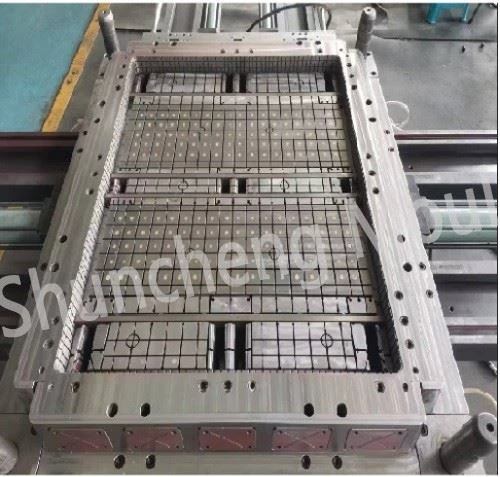

The cavity and core are the primary components of a plastic pallet mold responsible for creating the shape and dimensions of the pallet. The cavity defines the external shape, while the core defines the internal shape. These two components work together, forming a hollow space that determines the overall dimensions, thickness, and structural integrity of the plastic pallet.

Features:

The cavity and core are typically made from high-quality steel or aluminum. Steel molds offer excellent durability and stability, making them suitable for large-scale production. Aluminum molds, on the other hand, are lighter and provide faster cooling times, making them ideal for small-scale production runs or prototyping. The surfaces of the cavity and core are precision-machined to ensure high accuracy and smooth finishes on the molded pallet.

Functionality:

During the plastic molding process, the cavity and core of the mold close together, forming the cavity space. Molten plastic material is injected into the cavity and core, where it fills the space and takes the shape of the plastic pallet. The cavity and core are then separated to release the molded plastic pallet.

The injection system is a crucial component of a plastic pallet mold responsible for delivering the molten plastic material into the cavity and core. It consists of several sub-components, including the sprue, runner system, and gates.

Sprue:

The sprue is the main channel through which the molten plastic material is injected into the mold. It is typically located at the edge of the mold or at a designated entry point. The size and design of the sprue are determined by factors such as the volume of plastic material required and the flow characteristics of the material.

Runner System:

The runner system consists of channels that connect the sprue to the various gates leading to the cavity and core. It distributes the molten plastic material evenly throughout the mold, ensuring consistent filling and cooling. The design of the runner system plays a crucial role in minimizing waste, reducing cycle time, and optimizing the overall efficiency of the molding process.

Gates:

Gates act as flow control valves between the runner system and the cavity/core. Their primary function is to allow the molten plastic material to enter the cavity while preventing excessive leakage or flash. The design and location of the gates are critical in ensuring proper flow and filling of the mold, as well as facilitating the smooth ejection of the finished plastic pallet.

The cooling system is an essential part of the plastic pallet mold, responsible for controlling the cooling and solidification of the molten plastic material. Efficient cooling ensures faster cycle times, reduces production costs, and improves the quality of the molded pallet.

Cooling Channels:

Cooling channels are strategically placed within the mold to circulate a cooling medium, such as water or oil, around the cavity and core. The channels help to dissipate heat from the molten plastic, promoting rapid solidification and preventing deformation. The design and layout of the cooling channels are critical in achieving uniform cooling and minimizing cycle times.

Cooling Plates:

Cooling plates are often used in conjunction with cooling channels to enhance the efficiency of the cooling system. These plates are in direct contact with the mold surface and help to conduct heat away from the plastic material more effectively. Cooling plates are usually made of high-conductivity materials, such as copper or aluminum, and are integrated into the mold design based on specific cooling requirements.
