Auto Parts Mould

What is Auto Parts Mould?



Auto mould is the general term for the moulds used to manufacture all automobile parts. For example, injection moulds, stamping molds, forging molds, casting wax moulds, glass moulds, etc. The body of the car will appear in front of people when they talk about cars. In other words, the body is the identifying assembly of the car. The body represents the image characteristics of that car. In a narrow sense, automobile mould is the general name of the mould for punching all stamping parts on the automobile body.



Advantages of Auto Parts Mould

Affordable parts

Most parts made of metal cost more than plastic parts. The metals needed to make certain parts, such as the rims and chassis of a car, are limited resources, and most suppliers price them higher because of their value or rarity.





Faster production

Production is an essential aspect of manufacturing that needs to remain as high as possible to meet demand. The automotive industry's reliability comes from its ability to mass-produce vehicles and their parts. Injection molding benefits this industry by offering a fast turnaround for requests.

Durability

Although people see vehicles’ exteriors as the most durable parts because of their metal composition, they still have the potential to rust and corrode over time. Injection-molded parts of an automotive vehicle are some of the most durable pieces in the structure. Plastic lasts significantly longer than metal and maintains its shape and structure for decades.

Flexible design

As vehicles continue to push the boundaries of functionality and control for the driver, automotive parts may have different designs that require flexible manufacturing. Thanks to its flexibility, injection molding is the best process for designing new or innovative designs.



First 12 Last

Why Choose Us

01/

Quality assurance
Our plastic moulds company with high quality standards, detailed mould specifications and special requirements, enabling us to offer our customers a comprehensive solution to their injection molding needs.

02/

Comprehensive solution
We have mastered product development, mold design, raw material selection, process optimization, production management, quality control, customer service, international freight forwarding, etc.Can offer our customers a comprehensive solution to their injection molding needs.

03/

Professional team
Through years of experience in the manufacture of injection molding, we have cultivated an excellent team and established a comprehensive system to meet different needs of customers.

04/

Competitive price
We seek to reduce costs for our customers' product development and manufacturing, so as to help customers win in the highly competitive market.

Types of Auto Parts Mould

Car seat mould for kids
Baby car seat mold affects the plastic car safety seat molding production output a lot. A high efficient cooling system for the plastic car safety seat mold will shorten the shot circle, as a result, save more machining costs and time. Concerns a lot about mold cooling systems and production stability. Our aim is to make customers run molds as little as possible for mold repair work, the best is free of repair work during mass production.

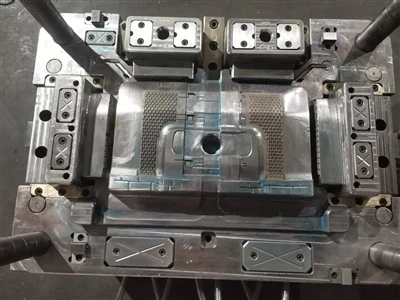

Auto rear view mirror housing mold
We can provide you with innovative solutions, speedy and speedy, and precise design & analysis, high quality, and longevity on your project.

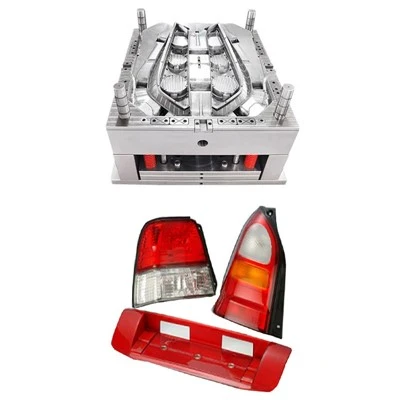

Car light mould

For cars, lamps are an essential function. The most important part of the lamp is the headlamp body, reflector, decorative frame, and lamp mirror. Green vitality provides car lamp cover mold design and manufacturing solutions.

Automotive air grille mold

The car grille is a mesh part of the front of the car. It is a very important part of auto parts. It has the functions of decoration, protection, and ventilation. Is an experienced on making kinds of automotive parts molds, especially in plastic car air grill mold.

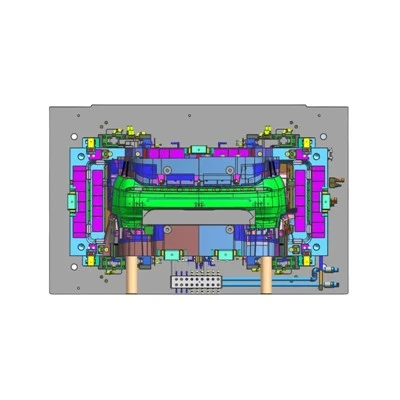

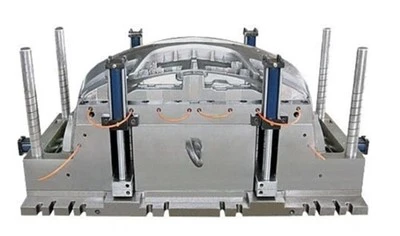

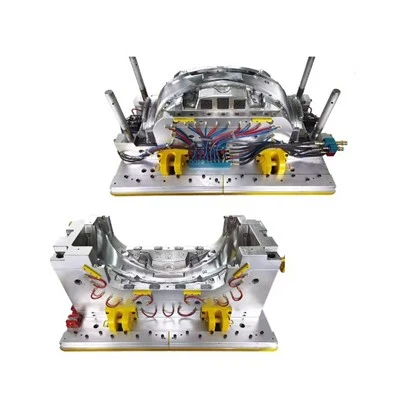

Auto bumper mould

Automobile bumpers are made of plastic materials, which not only have decorative functions but also have devices for absorbing and buffering shocks and protecting the body and the driver. Specializes in bumper making, bumper molding, car bumper manufacturing process.



Materials Used in Auto Parts Mould


Polyamide (pa)/ nylon

Nylon offers good abrasion and chemical resistance, although it is not resistant to liquids. It is often molded into automotive components like bushes and bearings.



Poly(methyl methacrylate) (pmma)

Pmma, known for its transparency and shatterproof nature, serves as an excellent substitute for glass. Molded pmma is utilized in automotive parts like headlight covers and internal screens (e.G., satnav or radio).

Polypropylene (pp)

Pp is a popular choice for high-intensity automotive parts, particularly in exterior components, due to its resistance to water, chemicals, and uv light. Bumpers, cable insulation, and battery covers are examples of pp parts.

Polyurethane (pu)

Pu is commonly used in flexible and cushioning applications, such as foam seating in cars. It also finds usage in automotive parts like seals and gaskets, insulation panels, and suspension bushings.



Polyvinyl chloride (pvc)

As the third most popular synthetic plastic polymer globally, pvc is utilized in various molded parts within the automotive industry that require excellent chemical resistance. Interior panels, dashboards, and cable insulation are commonly made from pvc.

Reinforced composites

Manufacturers can enhance the strength of plastics by incorporating glass or carbon fiber reinforcements. These reinforced composites are significantly stronger than ordinary resins and are often used in the production of car bodywork and bumpers.



The Crucial Role of Auto Parts Mould Factories in the Industry Chain

Automobile mold factories play a vital role in the production of automotive parts and, consequently, the overall automobile industry chain. Specialized mold production facilities offer several benefits that are essential for the successful and efficient production of automotive components.



Firstly, automobile mold factories provide customization and flexibility in mold design and fabrication. As each automotive part has unique specifications and requirements, mold factories collaborate with manufacturers to develop molds tailored specifically for their products. This ensures optimal part functionality, performance, and quality.



Secondly, specialized mold factories streamline production processes, leading to reduced lead times. By leveraging advanced machining technologies, automated processes, and efficient workflow management, mold factories can accelerate mold fabrication without compromising quality. This agile production capability enables automotive manufacturers to meet demanding production schedules and customer demands.



Thirdly, automobile mold factories offer cost-effective production. The optimization of resource utilization, coupled with economies of scale, allows mold factories to deliver high-quality molds at competitive prices. Additionally, the ability to produce high volumes of automotive parts efficiently contributes to overall cost reduction in the industry chain.



Lastly, automobile mold factories drive innovation and technological advancements in mold production. These factories invest in research and development to enhance mold quality, durability, and longevity. The result is continuous improvement in mold technology, enabling automotive manufacturers to produce cutting-edge components that meet evolving customer expectations in terms of design, performance, and safety.

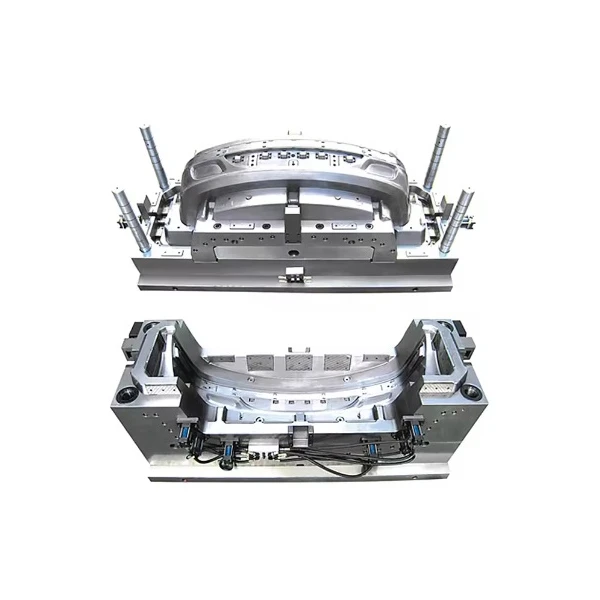

Compression Molds For Automotive



Production Process of Injection Moulding Automotive Parts



At the forefront of the injection molding process is mold design and development. During this stage, automotive manufacturers collaborate closely with mold factories to ensure that the mold design meets the required specifications. Precision and accuracy in mold design are critical, as even slight deviations can affect part functionality.

Through a combination of computer-aided design (cad) and computer-aided manufacturing (cam) technologies, mold designers meticulously craft the mold geometry, taking into account part complexity, material properties, and manufacturing considerations. Prototyping plays a significant role in validating the mold design before it advances to actual fabrication.



Material preparation and injection
Once mold design and development are completed, the attention shifts to material preparation. The choice of material is crucial, as it determines the part's strength, durability, and resilience to environmental factors. Automotive manufacturers work closely with material suppliers and mold factories to select the most suitable material for each component.

Based on the chosen material, the injection molding process requires precise preparation. First, the material is melted and mixed within an injection molding machine. During this step, additives such as reinforcing fillers or colorants can be introduced to enhance the material's properties. The molten material is then injected under controlled temperature and pressure into the mold cavity.



Cooling, ejection, and quality assurance
Once the molten material has been injected into the mold, it undergoes a cooling process to solidify and take the desired shape. Proper cooling is essential to maintain part integrity, dimensional accuracy, and prevent defects, such as warpage or sink marks that may compromise the final product's performance.

Following the cooling phase, the mold is opened, and the solidified part is ejected. The ejection system, designed within the mold, ensures the safe removal of the part without causing any damage.

Throughout the injection molding process, quality control measures are implemented to ensure consistent and reliable part production. These measures range from routine inspections, dimensional checks, and functional tests to guarantee that the final part meets the required specifications and industry standards.

Classification of Auto Parts Mould


Injection mold
Injection mold is also called injection mold. The molding process of this mold is characterized in that the plastic raw materials are placed in the heating barrel of the injection machine. The plastic is heated and melted. Driven by the screw or plunger of the injection machine, it enters the mold cavity through the nozzle and the pouring system of the mold. The plastic is solidified and formed in the mold cavity through heat preservation, pressure holding, and cooling. Because the heating and pressurizing device can play a role in stages, injection molding can not only form plastic parts with complex shapes but also have high production efficiency and good quality. Therefore, injection molding occupies a large proportion of the molding of plastic parts, and the injection mold accounts for more than half of the plastic molding mold. The injection machine is mainly used for the molding of thermoplastics and has gradually been used for the molding of thermosetting plastics in recent years.



Compression mold
Compression die is also called pressing die or glue pressing die. The molding process of this mold is characterized in that the plastic raw materials are directly added into the open mold cavity, and then the mold is closed. After the plastic is in a molten state under the action of heat and pressure, the mold cavity is filled with a certain pressure. At this time, the molecular structure of the plastic produced a chemical cross-linking reaction and gradually hardened and shaped. Compression molds are mostly used for thermosetting plastics, and their molded plastic parts are mostly used for the shell of electrical switches and daily necessities.



Transfer mold
Transfer mold is also called pressure injection mold or extrusion mold. The molding process of this mold is characterized in that the plastic raw materials are added to the preheated feeding chamber, and then the pressure is applied to the plastic raw materials in the feeding chamber by the pressure column. The plastic melts under high temperature and high pressure and enters the cavity through the pouring system of the mold, and then the chemical crosslinking reaction occurs and gradually solidifies and forms. The transfer molding process is mostly used for thermosetting plastics, which can form plastic parts with complex shapes.



Extrusion mold
The extrusion die is also known as the extruder head. The die can continuously produce plastics with the same section shape, such as plastic pipe, bar, sheet, etc. The heating and pressurizing device of the extruder is the same as that of the injection machine. The molten plastic will form continuous molded plastic parts through the machine head, and the production efficiency is particularly high.

Molding parts on automobile bodies are generally divided into covering parts, beam frame parts, and general stamping parts. The stamping part that can clearly represent the image characteristics of the automobile is the automobile panel. Therefore, the more specific automobile die can be said to be an automobile panel stamping die. For example, trimming die for front door outer panel, punching die for front door inner panel, etc.


FAQ


Q: What is the common steel for auto parts molds?

A: 738, 738h, nak80, s136, etc, the mold steel is dependent on the mold life and product quantity. We can select the steel type according to your request.

Q: What does injection molding consist of?

A: Injection molding is a method to obtain molded products by injecting plastic materials molten by heat into a mold, and then cooling and solidifying them. The method is suitable for the mass production of products with complicated shapes, and takes a large part in the area of plastic processing.

Q: What is the lead time for an auto part mold?

A: Generally, a typical mold takes 5–6 weeks from start to t1, it can take 7–10 weeks for multi-cavity molding or more complex mold. Longer lead time factors may be due to the type of injection systems, such as hot runners, high surface, and high tolerance dimensional requirements.

Q: Why is it necessary to make a prototyping mold for auto parts?

A: Because prototyping mold is a very effective method, new products can be developed early to better meet specifications at a lower cost. The samples can also be obtained in the fastest way so that the functional performance of the parts can be tested before investing costly series of molds.

Q: What is an automotive mold?

A: Automotive moulding or car body moulding are decorative and protective mouldings on the car body. The term applies both to the detail and the material. Chevrolet c/k with body side moulding. Car mouldings include side body moulding, lower body moulding, door moldings, window mouldings, footrest moulding, mudflaps, etc.

Q: What are the raw materials of auto parts?

A: Steel, rubber, plastics, and aluminum are the four most common commodities found in cars. The auto industry relies heavily on petroleum products, not just for gasoline for autos with internal combustion engines (ice), but for synthesizing plastics and other synthetic materials.

Q: What is exterior molding on a car?

A: Basically, the exterior car trim includes your bumpers, trim, window/door seals, wheel wells, and headlights. Most of the trim consists of plastic, but rubber and vinyl appear in some parts as well. Manufacturers use these to add aesthetics, increase function, and add flexibility to the car design.

Q: What material are auto parts?

A: The automobile industry consumes raw materials from around the world in the production of cars and auto parts. Steel, rubber, plastics, and aluminum are the four most common commodities found in cars.

Q: What are the components of a mold?

A: Mold components are what make the mold work and the mechanisms used to deliver a quality end product. Key components include mold bases, pins, ejectors, lifters, bushings, guides and alignment devices. Mold components can be broken down into three categories: Frame plates, frame components, and cavity tooling.

Q: What material is used in automotive plastic parts?

A: Polypropylene is used the most frequently of any plastic in automotive manufacturing. Being a thermoplastic polymer, it can easily be formed into almost any shape. It has excellent chemical and heat resistance and is generally resistant to impact.

Q: What automobile parts are made by casting?

A: The major automobile components made using casting are pistons, engine blocks, valve covers, wheels, transmission housing, carburetors, fan clutches etc. With the constant need to make the automobiles lighter and stronger, magnesium alloy and titanium casts have grown due to their superior corrosion performance.

Q: What are bumpers made of?

A: Materials. Most oem bumpers are made out of plastic and feature an aluminum or steel reinforcement bar hidden in the middle. Some bumpers may also contain polypropylene in order to help absorb energy during an impact.

Q: What is the molding process in automotive?

A: Automotive injection molding is a manufacturing process that uses a high-pressure plastic injection to form a variety of automotive parts, such as body panels, interior components, and engine parts.

Q: What automotive parts are injection molding?

A: Injection-molded car parts for automotive interiors include grills, bumpers, headlights, fenders, side mirrors, and splash guards. Exterior components run from the dashboard to the roof lining and include door handles, center consoles, and plastic parts with a decorative finish.

Q: What is molding in a car?

A: Molding refers to the practical elements that are used to protect the car from damage or wear, such as the rubber moulding around the doors and windows. Trim, on the other hand, typically refers to the decorative elements that are used to enhance the appearance of the car, such as chrome or metallic accents.

Q: Are car bumpers injection molded?

A: Car bumper molding involves shaping and forming the material for car bumpers into the desired shape and size, often through injection molding. However, this process can be accompanied by various challenges and problems that can affect the performance of the bumper.

Q: What material are auto parts?

A: The automobile industry consumes raw materials from around the world in the production of cars and auto parts. Steel, rubber, plastics, and aluminum are the four most common commodities found in cars.

Q: What is the process of injection molding car parts?

A: It involves injecting molten material, typically thermoplastics, into a mould cavity, allowing it to cool and solidify, and then ejecting the finished product. The process is highly efficient, as it enables mass production of identical parts with minimal waste.

Q: What are car moulds made of?

A: Based on the above performance introduction, the materials suitable for drawing punches, dies, and blanking rings are molybdenum-chromium cast iron and cr12mov; the materials suitable for shaping molds are molybdenum-chromium cast iron, cr12mov, as-cast air-cooled steel.

Q: How are plastic car parts made?

A: The manufacturing process is more straightforward, with parts typically injection-molded or blow-molded from plastic resin, as opposed to the welding, stamping and other processes for shaping metal in automotive manufacturing.

We're professional auto parts mould manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy auto parts mould in stock here from our factory. For price consultation, contact us.
