Transparent Injection Molding
Your Professional Transparent Injection Molding Supplier
Taizhou Guyou Mould and Plastic Co., Ltd. is a company with several years of experience in plastic custom injection molding and tooling manufacturing. Established in 2006 and located in Huangyan, Taizhou City—known as the "Mould Town of China"—we specialize in high-quality plastic molds.
Our main products include plastic household molds, automobile molds, gas-assisted injection molds, plastic thermosetting molds, industrial product molds, and more.
-

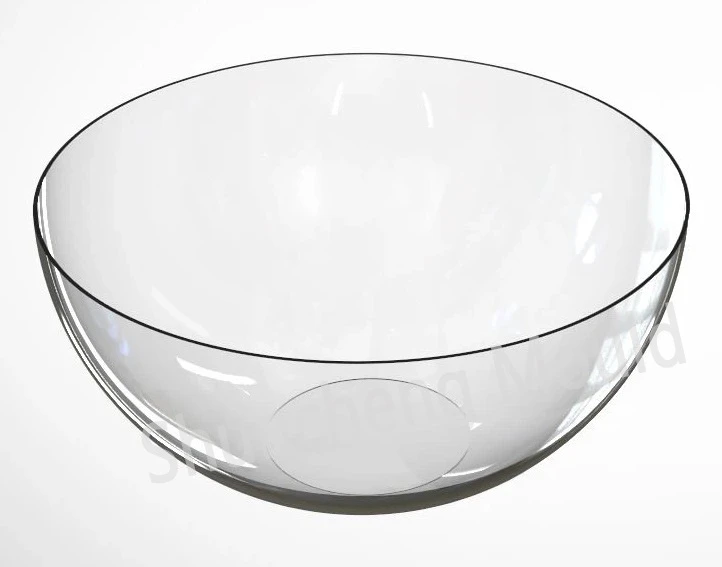

![PS PMMA PET PC Transparent Injection Molding]()
PS PMMA PET PC Transparent Injection MoldingPS PMMA PET PC Transparent Injection Molding Process characteristics of PMMA Process characteristics of PC Process characteristics of PETread more
Why Choose Us
Quality Assurance
We adhere to high quality standards with detailed mold specifications and special requirements, allowing us to provide customers with comprehensive solutions for their injection molding needs.
Comprehensive Solutions
We have expertise in product development, mold design, raw material selection, process optimization, production management, quality control, customer service, and international logistics—offering a full range of services for injection molding projects.
Professional Team
With years of manufacturing experience, we have built an excellent team and established a comprehensive system to meet the diverse needs of our customers.
OEM/ODM Service
Both OEM and ODM services are available. Styles can be customized, and we will advise on the minimum order quantity after discussion.
|
Product Description |
PS PMMA PET PC Transparent Injection Molding |
|
Plastic Materials |
PS, ABS, PP, PVC, PMMA, PBT, PC, POM, PA66, PA6, PBT+GF, PC/ABS, PEEK, HDPE, TPU, PET, PPO,...etc. |
|
Standard |
ISO9001:2008 |
|
Quality |
RoSH and SGS standard |
|
Feature |
Non marking and Non flash |
|
Size |
According to your 2D, 3D Drawing |
|
Color,Quantity,Unit price,Tooling cost,Tooling size |
To be discussed |
|
Package |
Standard exported Wooden box packed, Fumigation process(upon required) |
|
Mold Building Lead Time |
20~30 working days, Part measurement report (upon required). |
|
Export Country |
Europe, Japan, America, Australian, UK, Canada, France, Germany, Italy...etc.: |
|
To be discussed |
In-Mold Decoration, Injection Mould, Plastic Mold, Overmould, 2K Mould, Die-Casting Mould, Stack Mold,Interchangeable Mold,Collapsible Core Mold, Die Sets, Compression Mold, Cold Runner System,hot runner system mold...etc. |
|
Mould Base |
Hasco Standard, European Standard, World Standard,DEM standard,HUSKY standard...etc |
|
Mould Base Material |
LKM, FUTA, HASCO, DME,...etc. Or as per Customer's Requirment |
|
Surface Finish |
Texture(MT standard), High gloss polishing,mirror polishing |
|
Cavity/Core Steel |
P20, 2311, H13, 2344, Starvax 420, 236, 738H, S136, 2312, 2379, 2316, 2083, Nak80, 2767 ...etc. |
|
Mould Life |
250,000 to 1,000,000 Shots. (According to your working environment.) |
|
Design & Program Softwares |
CAD, CAM, CAE, Pro-E, UG, Soild works, Moldflow, CATIA....etc. |
|
Equipments |
High speed CNC, Standard CNC, EDM, Wire Cutting, WEDM, Grinder, Plastic Injection Molding Machine for trial out mold from 50-3000T available. |
Due to its significant advantages such as light weight, good toughness, easy molding and low cost, plastics are increasingly used in modern industrial and daily life products, especially in the fields of optical instruments and packaging industries, where the substitution effect of plastics is becoming more and more obvious. However, to achieve high transparency, excellent wear resistance, impact toughness, and fine control of cost and process, in-depth research and optimization of plastic composition, injection molding process, equipment and molds are required.
Currently popular transparent plastic materials on the market include polymethyl methacrylate (PMMA, commonly known as acrylic or plexiglass), polycarbonate (PC), polyethylene terephthalate (PET), transparent nylon AS and polysulfone PSF. Among them, PMMA, PC and PET are the most widely used. Next, we will take these three plastics as examples to explore the injection molding process of transparent plastics.
PMMA, that is, polymethyl methacrylate, has a high viscosity and relatively poor fluidity. Therefore, high material temperature and high injection pressure are required during the injection molding process. It is worth noting that the injection temperature has a more significant effect on the fluidity of PMMA, while increasing the injection pressure helps to improve the shrinkage of the product. Its melting temperature is 160℃, while its decomposition temperature is as high as 270℃, which makes the adjustment range of material temperature relatively wide, thus having good processability. In order to further improve fluidity, we mainly optimize from the injection temperature.
In addition, PMMA performs poorly in terms of impact resistance and wear resistance, and is prone to scratching and brittle cracking. To overcome these defects, we can consider increasing the mold temperature and optimizing the condensation process.
Process characteristics of PET
PET requires a higher temperature (approximately between 260-300℃) during the molding process, and the material temperature adjustment range is narrow. However, once melted, its fluidity becomes very good. It is worth noting that PET often needs to add an anti-draft device to the nozzle to prevent poor flow. In addition, the mechanical strength and performance of PET are not high after injection, and need to be further improved through stretching process and modification. Therefore, during the injection molding process, we need to accurately control the mold temperature (hot runner mold is recommended) and ensure that the mold temperature is high enough to prevent product warping or deformation. At the same time, we also need to pay attention to avoid problems such as poor surface gloss and difficulty in demolding.
FAQ
We're professional transparent injection molding manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy transparent injection molding in stock here from our factory. For price consultation, contact us.
