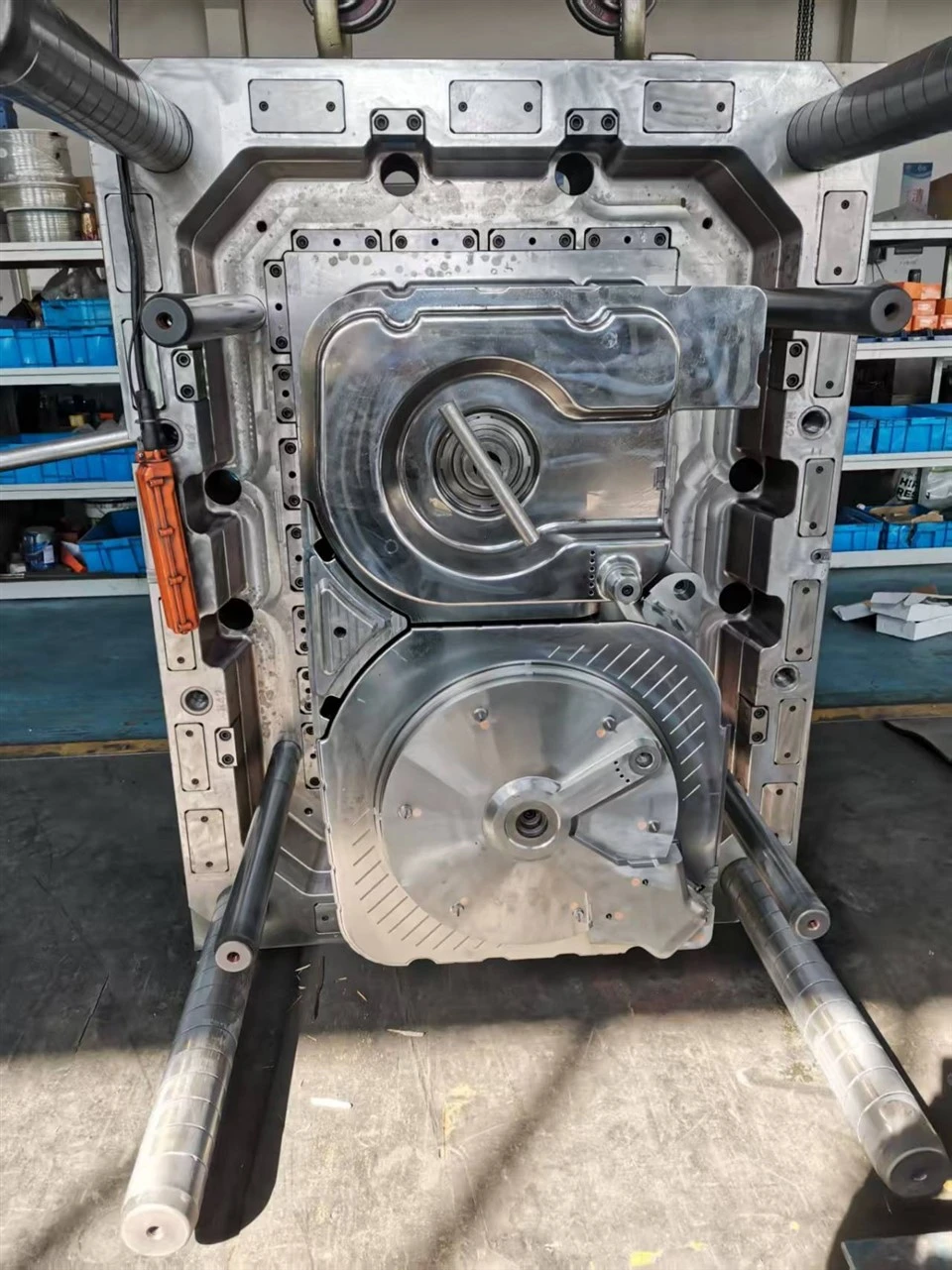

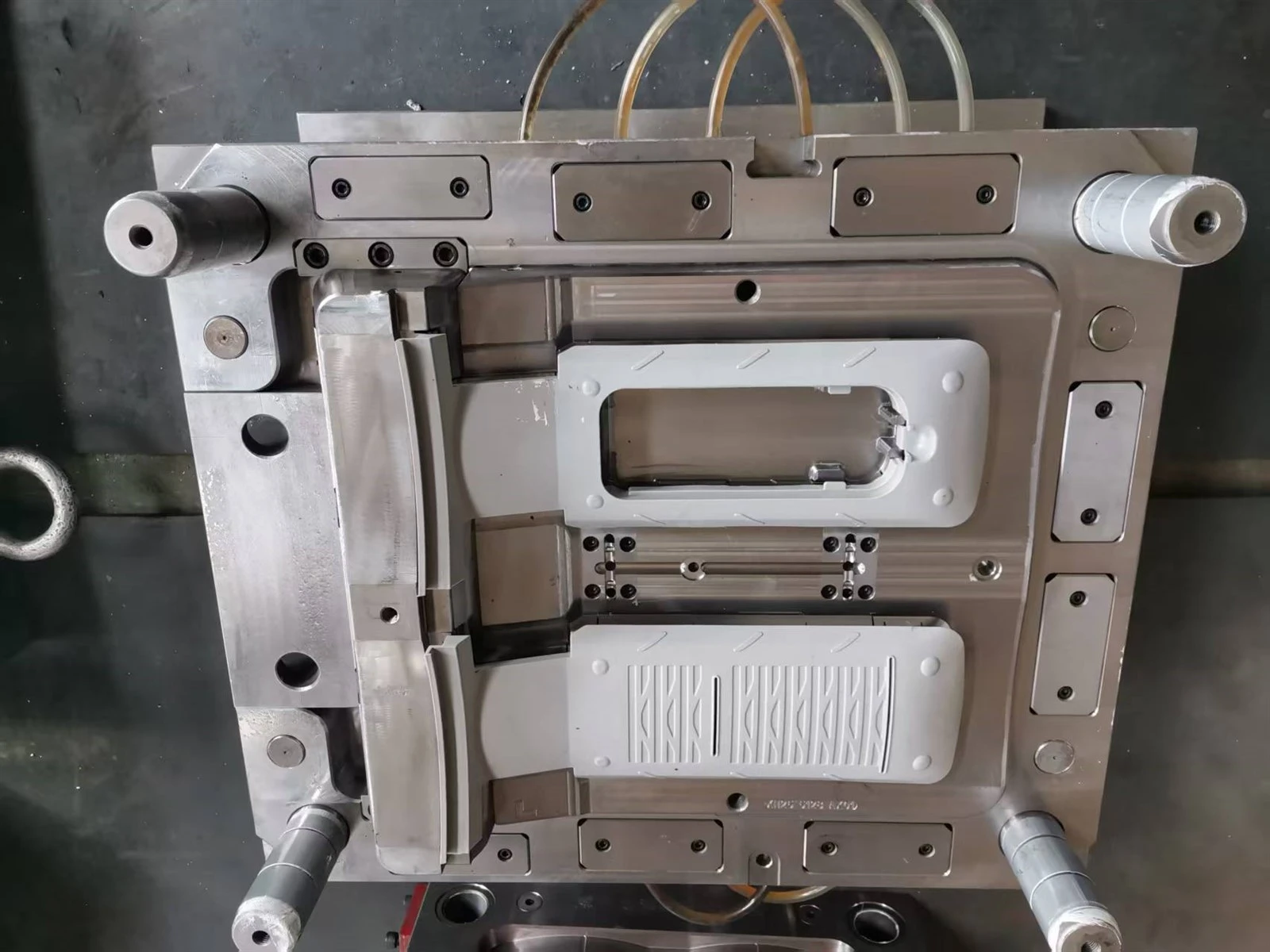

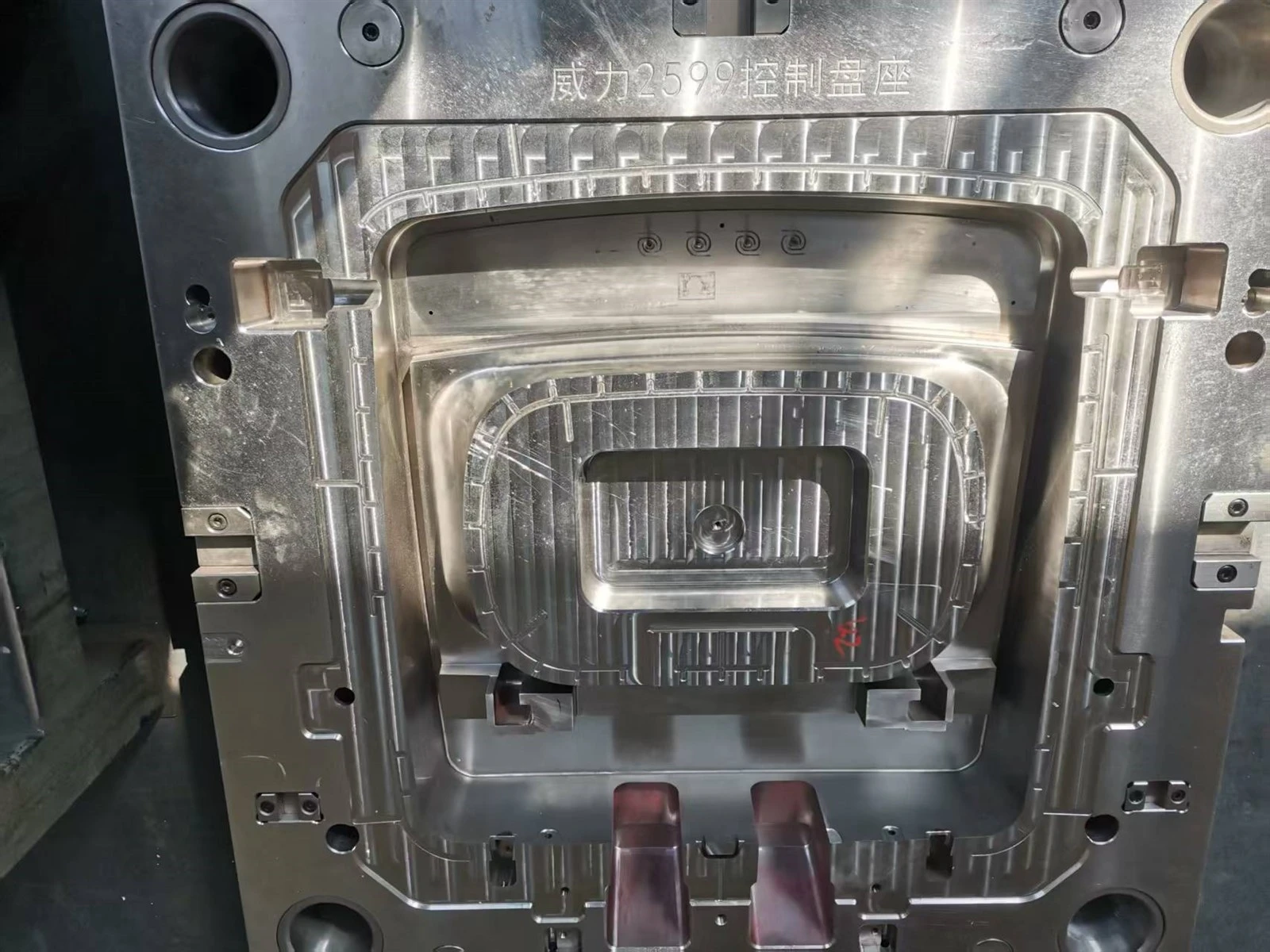

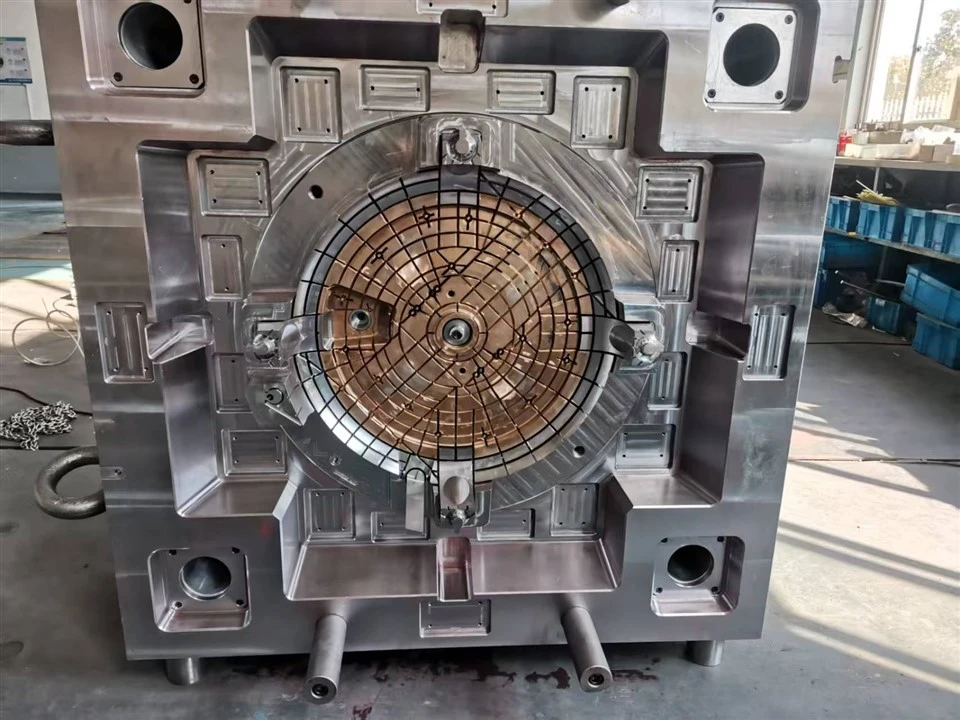

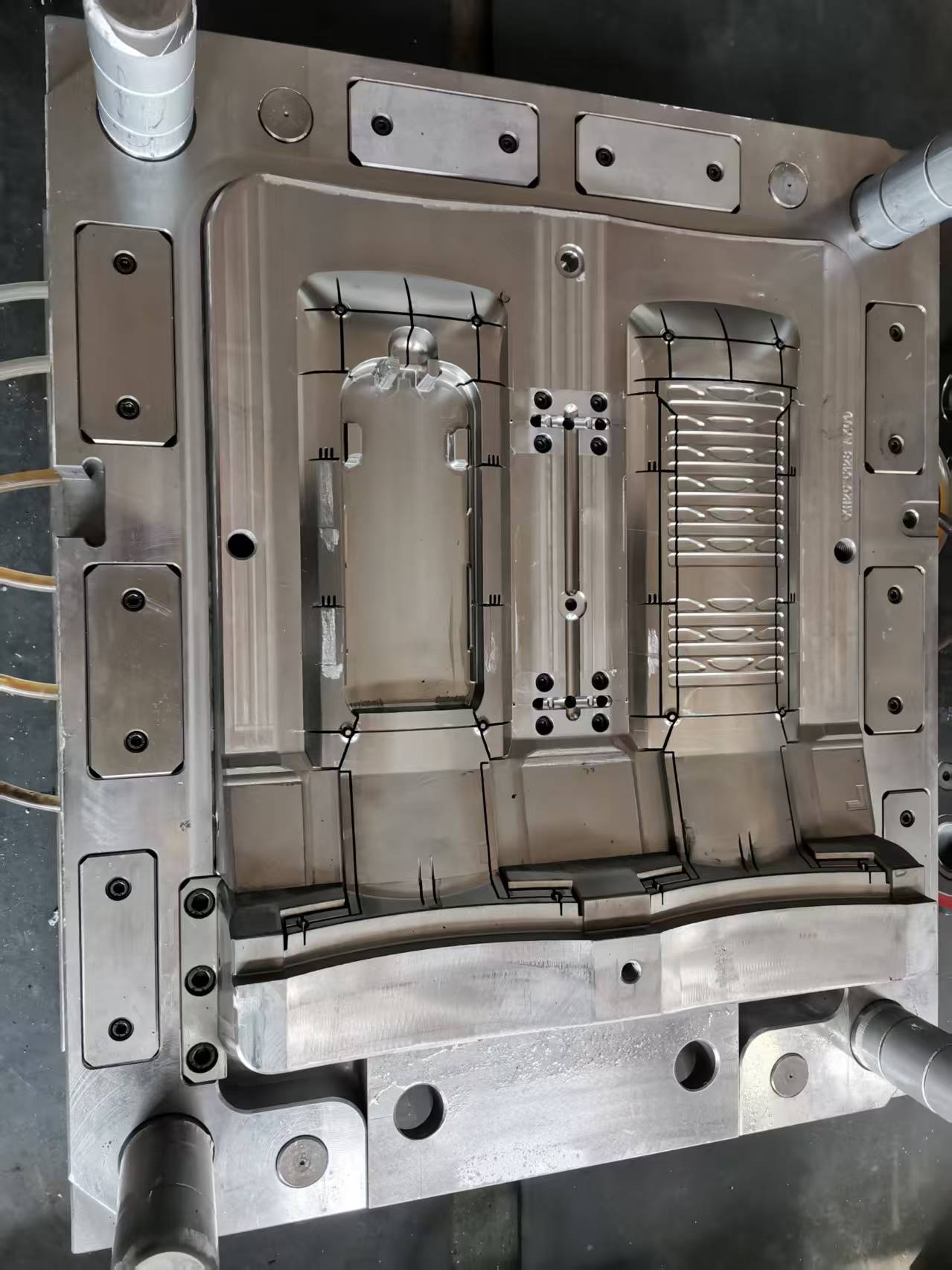

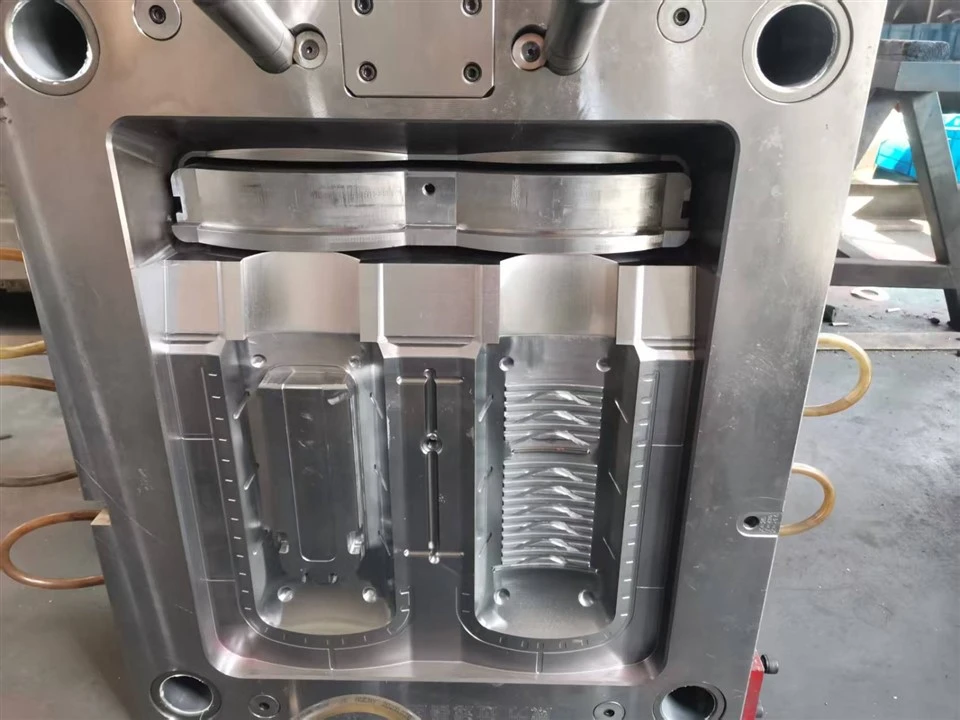

Washing Machine Mould
I. Product Overview
1. Product Definition
(1) Washing machine molds refer to specialized molding tools used to produce various plastic components of washing machines. They are a type of plastic mold.
(2) Application Areas:

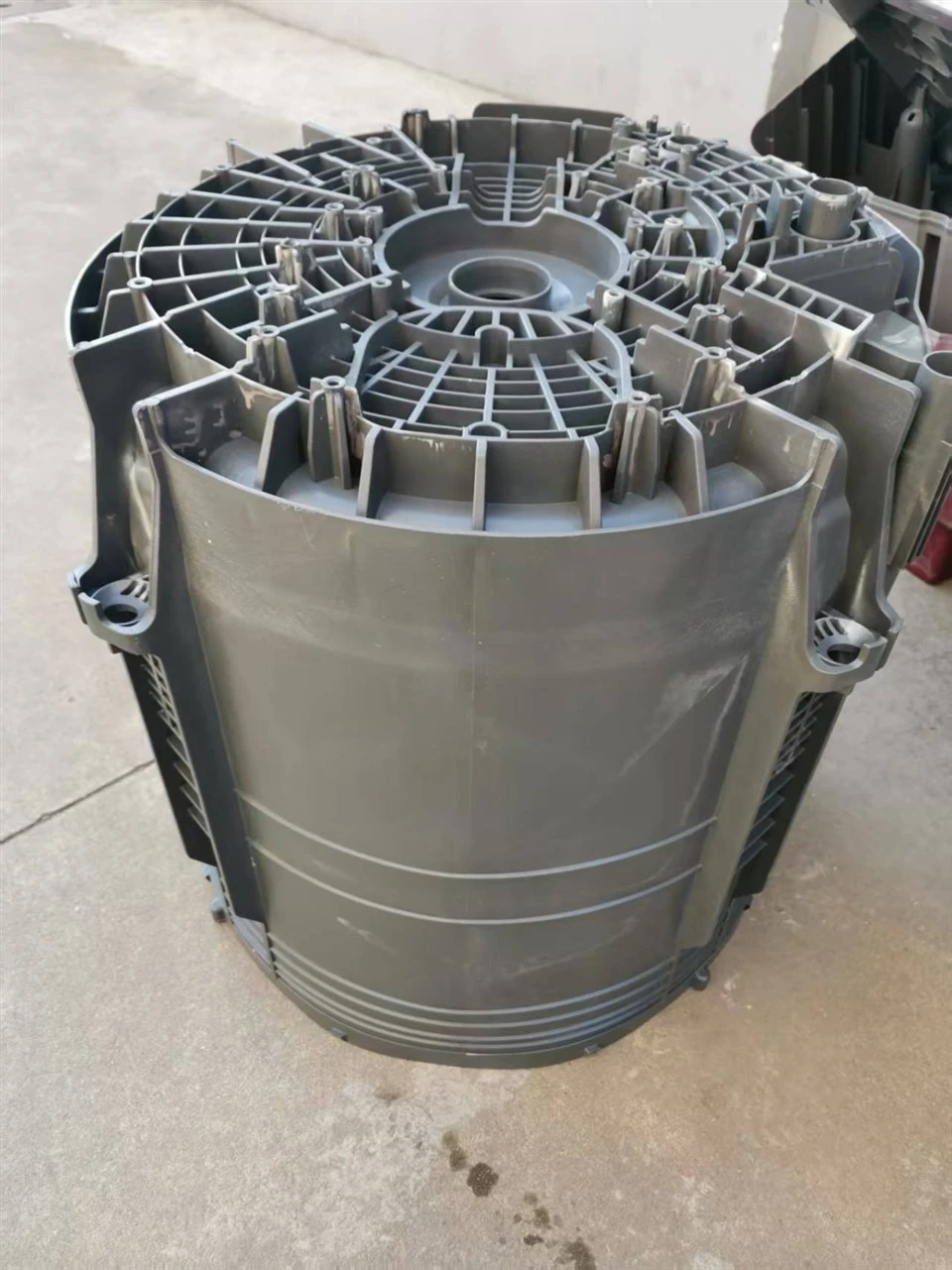

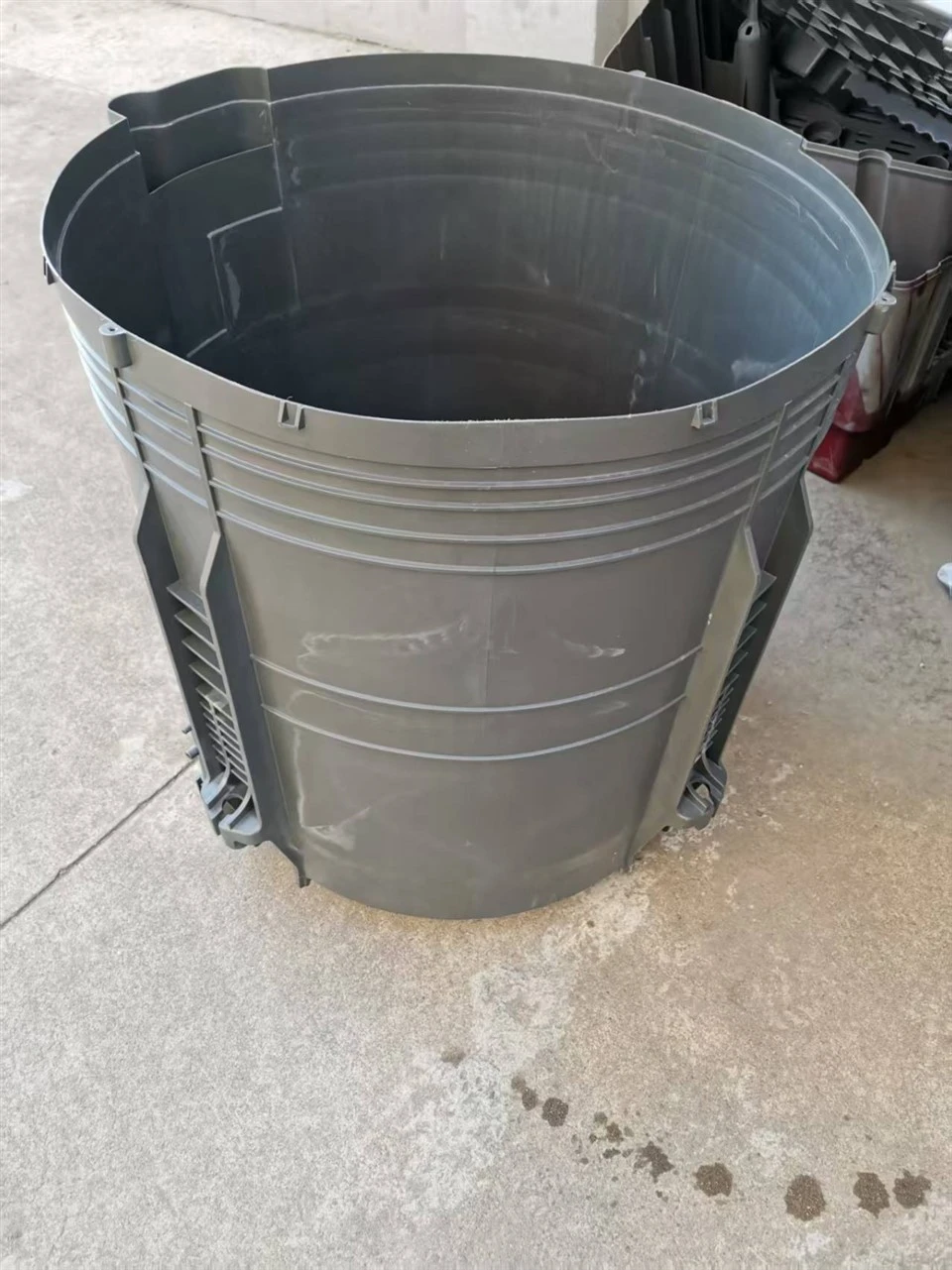

Washing machine molds are key tools used in industrial production for manufacturing plastic components of washing machines, mainly used for molding parts such as the washing machine casing, panel, inner drum, and control panel.
2. Core Objective
To create molds that can accurately and efficiently produce all components of a washing machine.
II. Technical Parameters and Design Highlights
1. Mold Specifications
(1) Mold Type: Cold runner mold
(2) Number of Cavities: 2 cavities
(3) Mold Material: 718H
2. Structural Design
(1) Parting Surface Optimization: Precision positioning system, the parting surface is designed with clearance to reduce contact area, minimize flashing and burrs, and improve product yield.
(2) Cooling System: Water channels are provided 20mm below the product, shortening the molding cycle and ensuring uniform cooling.
(3) Ejection System: Mechanical ejection, pneumatic cylinder reset.
(4) Venting Groove Design: Multi-stage venting system is provided on the parting surface.
3. Compatible Materials
(1) Common Plastics: ABS
(2) Environmental Requirements: No flame retardant materials
III. Core Advantages and Differentiation
1. High-Precision Machining
Using CNC high-speed milling, EDM electrical discharge machining, precision grinding, and deep hole drilling, the accuracy reaches ±0.02mm.
Surface treatment: Texture treatment
2. Customized Service
Supports design according to customer needs: front compartment decorative cover assembly size (S/M/L), ventilation hole layout, buckle structure, etc.
Provides 3D drawing confirmation, T0 trial mold report, and mass production debugging support.
IV. Quality Assurance and Certification
1. Testing Standards
(1) Dimensional Inspection: Coordinate Measuring Machine (CMM)
(2) Trial Mold Verification: Provides first sample inspection report (dimensions, weight, surface defects).
V. Service Support
1. Delivery Cycle
(1) Standard Molds: 50 days (depending on complexity). (2) Expedited service: 30-40 days (requires additional negotiation).
2. After-sales service and warranty
Warranty period: 3 years (free repair for non-human-induced damage).
