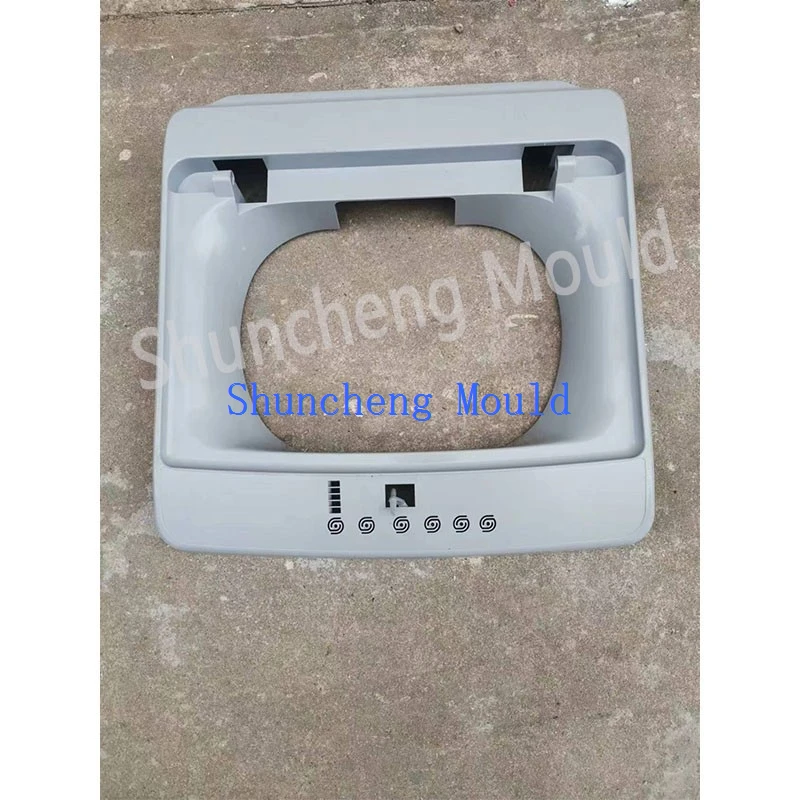

Washing machine control panel seat mould
Product material: ABS
Number of cavities: 1
Glue feeding method: 6-point hot runner
Mold material:
1. Core: 2738TS
2. Cavity: 718TS
3. Slider: P20H
4. Insert: XPM

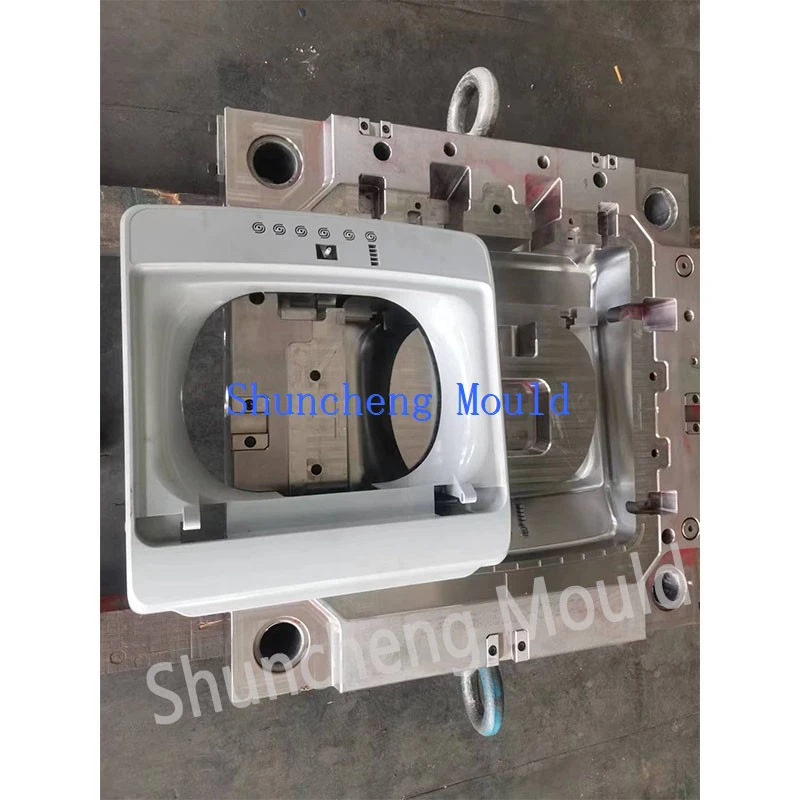

Mold structure:
The core slider is pulled by the inclined guide column;
The cavity is pulled out and the mold is opened again;
The ejector pin, inclined ejector and ejector block push out the product;
The air cylinder is reset.
Mold life: 500,000 times
Construction period: 60 days
The production process of the washing machine control panel seat mold mainly includes the following steps:
Design stage:
Design drawings: According to the design drawings of the washing machine control panel provided by the customer, the designer draws a detailed mold drawing and determines the mold structure, size, material and other parameters.
Glue feeding method: Adopt point gate to 3-point submerged gate and submerged flat gate to ensure the automatic separation of plastic parts and gate condensate.
Cooling system design: Design a reasonable cooling system to ensure that the mold can be evenly cooled during the injection process to avoid deformation of the plastic parts.
Manufacturing stage:
Material selection: Usually high-quality steel or aluminum alloy is selected as the mold material.
Processing and manufacturing: Including cutting, milling, drilling, grinding and other processes to ensure the accuracy and quality of each component of the mold.
Assembly and debugging: Assemble the various components of the mold, debug and test them to ensure that the mold runs stably and the quality of the plastic parts meets customer requirements.
Injection molding production stage:
Injection molding process: Install the mold on the injection molding machine, heat the plastic particles to melt them and inject them into the mold cavity for molding. It is necessary to control the temperature, pressure and speed of the injection molding machine to ensure that the plastic fills the mold cavity to form a complete washing machine control panel.
Cooling and demoulding: After the injection molding is completed, wait for the plastic to cool and solidify, then open the mold and take out the molded washing machine control panel.
Post-processing stage:
Surface treatment: Deburr, polish, paint and other treatments are performed on the molded washing machine control panel to ensure that the appearance and quality meet the customer's requirements.
Quality inspection: After strict quality inspection and testing, ensure that the washing machine control panel meets product standards and requirements.
Packaging & Delivery
Packaging Details:
1.Anti-rust oil
2.Plastic film
3.Wooden case
4.Or according to customer's requirement.
5.Port: Ningbo/Shanghai
6.Lead Time: 60 days
