The manufacturing system of washing laptop injection mould usually consists of the following steps:
1. Design stage
- Product analysis: According to the plan necessities and purposeful necessities of washing desktop parts, the injection molded components are analyzed in element to decide their shape, size, precision requirements, floor exceptional requirements, etc. For example, for the internal drum injection molded components of the washing machine, it is vital to think about its parameters such as diameter, depth, wall thickness, and the layout of buildings such as holes and reinforcement ribs on the internal drum.
- Mold shape design: Based on the evaluation outcomes of the injection molded parts, the usual shape of the mould is designed. Including deciding the wide variety of cavities (single cavity or more than one cavities), the function of the parting surface, the shape of the pouring machine (such as the type, function and quantity of gates), the format of the cooling system, the demolding method, etc. For example, for injection molded components with complicated shapes, it can also be indispensable to adopt a mildew shape composed of a couple of inserts for effortless processing and demolding; for massive injection molded parts, it is critical to sketch a sensible cooling water channel to make certain uniform cooling impact of the mold.
- Simulation verification: Use computer-aided layout (CAD) and computer-aided engineering (CAE) software program to simulate and analyze the format of the mold. For example, CAE software program is used to simulate the waft system of plastic soften in the mould cavity, predict viable defects such as inadequate filling, weld marks, bubbles, etc., and optimize the mildew layout based totally on the evaluation results.
2. Material instruction stage
- Steel selection: Select appropriate mould metal in accordance to the use necessities and overall performance traits of the mold. Commonly used mould steels consist of carbon structural steel, alloy structural steel, stainless steel, etc. For washing desktop injection molds, it is typically quintessential to pick out metal with precise put on resistance, hardness and durability to make certain the provider existence and molding first-rate of the mold.
- Steel processing: The chosen metal is pre-processed by using cutting, forging, annealing, etc. to reap the required dimension and overall performance requirements. For example, a giant piece of metal is cut into blanks of more than a few factors of the mold, and then the density and electricity of the metal are increased through forging, and ultimately annealing is carried out to get rid of the interior stress of the steel.
3. Processing stage
- Mechanical processing: Various mechanical processing gear such as milling machines, lathes, drilling machines, grinders, etc. are used to precisely system a variety of aspects of the mold. Including machining the form and dimension of components such as cavities, cores, sliders, inserts, and machining the mounting holes, positioning holes, cooling water channel holes, etc. of the mold. For example, use a CNC milling computing device to desktop the complicated structure of the cavity to make sure its dimensional accuracy and floor quality; use a drilling laptop to desktop the cooling water channel holes to make certain the easy and uniform distribution of the water channel.
- Electrospark machining: For some parts with complicated shapes that are tough to attain thru mechanical machining, such as the great shape inner the mildew cavity and the undercut structure, electrospark machining can be used. Electrospark machining makes use of the discharge corrosion impact between the electrode and the workpiece to put off the workpiece material, thereby accomplishing the motive of machining.
- Wire slicing machining: Mainly used for machining two-dimensional form components of the mold, such as the form of the template and the contour of the insert. Wire reducing machining has the traits of excessive precision and excessive efficiency, and can make certain the dimensional accuracy and form accuracy of the parts.
4. Assembly stage
- Parts cleaning: Clean the processed mould components to eliminate impurities such as oil, rust, dust, etc. on the floor to make certain the floor high-quality and meeting accuracy of the parts.
- Parts inspection: Inspect the cleaned mildew parts, inclusive of dimensional accuracy inspection, structure accuracy inspection, hardness inspection, etc., to make sure that the components meet the plan requirements. For example, use a three-coordinate measuring desktop to precisely measure the dimensions of the cavity and core, and use a hardness tester to notice the hardness of the steel.
- Mold assembly: Assemble the quite a number mould components in accordance to the sketch requirements. During the meeting process, it is indispensable to make sure that the set up role of the components is correct and the connection is firm. For example, deploy the cavity and core on the template, and make sure their role accuracy thru positioning pins or positioning keys; set up movable parts such as sliders and inserts on the mold, and make certain that they go flexibly and smoothly.
- Debugging and correction: After assembly, debug the mold. Including checking whether or not the opening and closing motion of the mildew is normal, whether or not the pouring machine is unobstructed, and whether or not the cooling device is effective. If issues are found, make corrections and changes in time till the mould meets the diagram necessities and utilization requirements.
5. Trial mould stage
- Trial mildew preparation: Install the assembled mildew on the injection molding laptop and debug it. The debugging content material consists of adjusting the parameters of the injection molding machine, such as injection pressure, injection speed, conserving time, cooling time, etc.; checking whether or not the mildew is established firmly, whether or not the connection between the mildew and the injection molding computing device is normal, etc.
- Mold trial operation: Perform mildew trial on the injection molding machine, warmness and soften the plastic uncooked material, inject it into the mould cavity, and study the molding of the plastic part. During the mildew trial, it is vital to document the operation of the mold, the molding exceptional of the plastic phase and different information.
- Mold adjustment: Adjust and optimize the mildew in accordance to the mould trial results. If defects are located in the plastic part, such as inadequate filling, flash, shrinkage, etc., it is imperative to analyze the motives and make corresponding changes to the shape and technique parameters of the mold. For example, if there is a hassle of inadequate filling, it can also be indispensable to modify the function or dimension of the gate, extend the injection strain or injection speed; if there is a hassle of flash, it might also be vital to alter the parting floor accuracy of the mold, minimize the mould clearance, etc.
6. Acceptance and shipping stage
- Final inspection: Perform a closing inspection on the adjusted mildew to make sure that the a variety of overall performance indications and molding exceptional of the mildew meet the layout necessities and client requirements. The inspection contents consist of the mold's dimensional accuracy, floor quality, exceptional of molded parts, mildew life, etc.
- Delivery and use: Molds that have exceeded the remaining inspection can be delivered to clients for use. At the equal time, it is indispensable to supply clients with mildew instructions, preservation manuals and different applicable data so that clients can use and preserve the mould correctly.

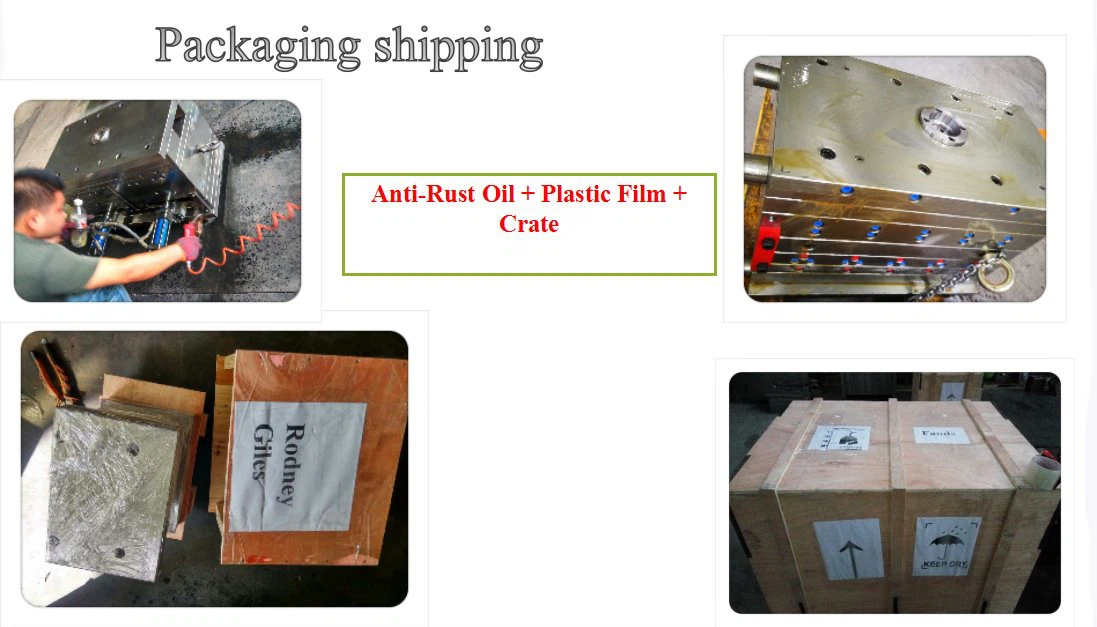

Packaging & Delivery
Packaging Details:
1.Anti-rust oil
2.Plastic film
3.Wooden case
4.Or according to customer's requirement.
5.Port: Ningbo/Shanghai
6.Lead Time: 60 days

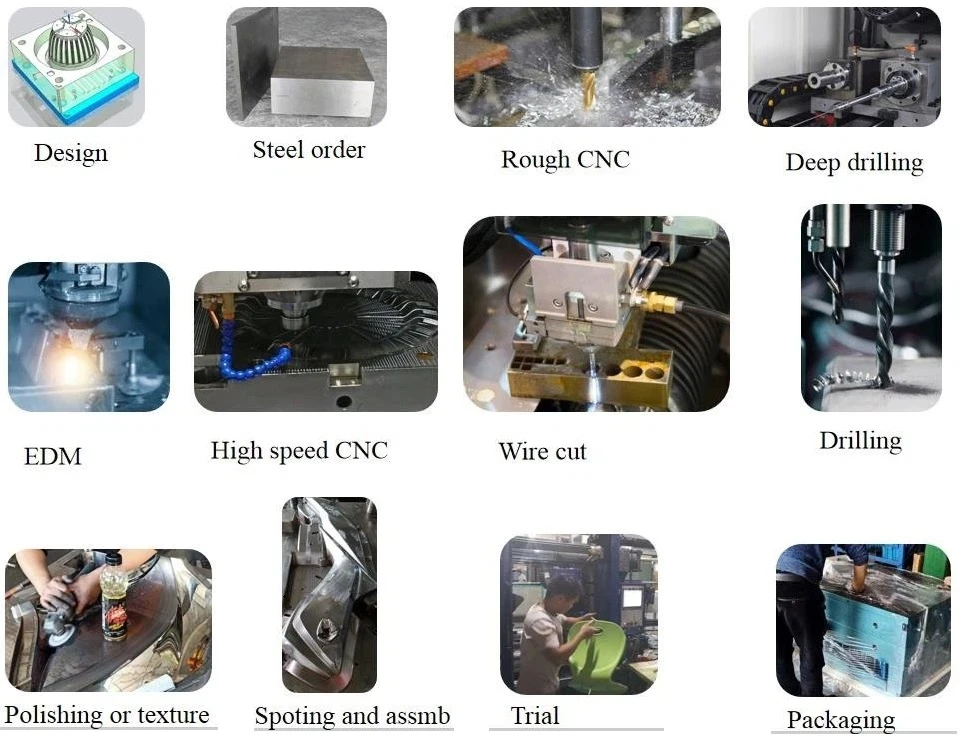

Order Manufacturing Process

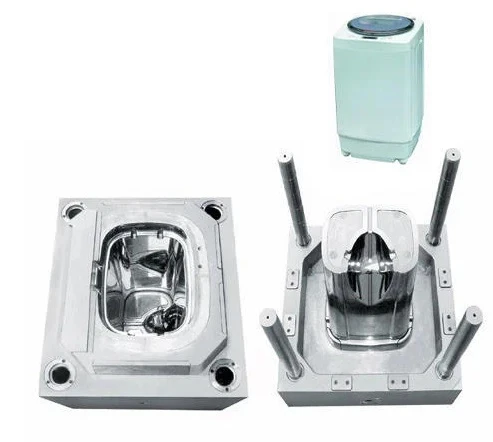

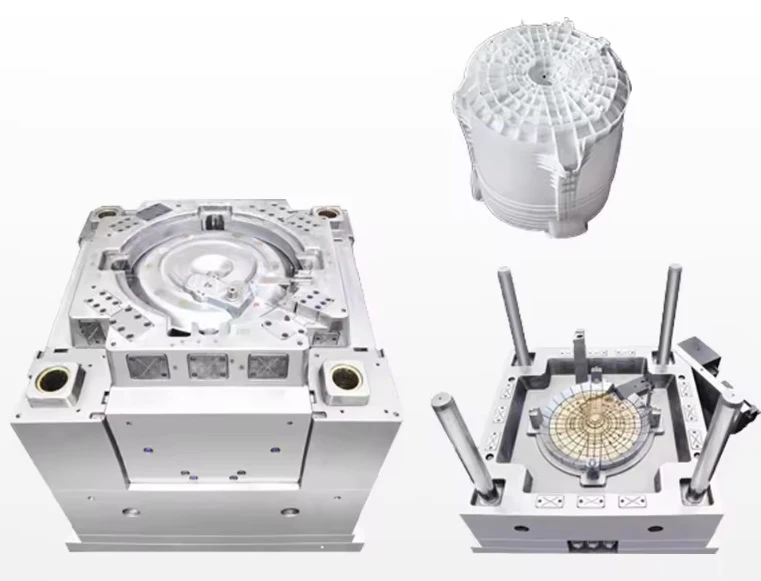

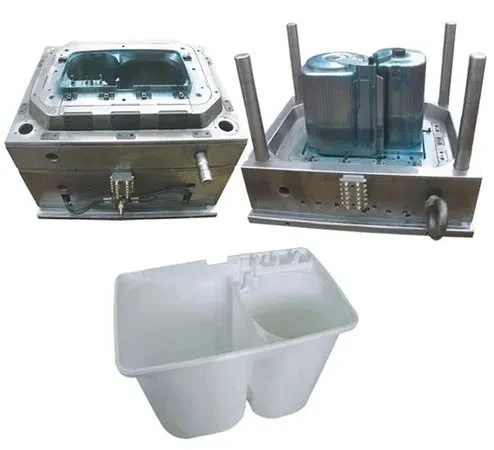

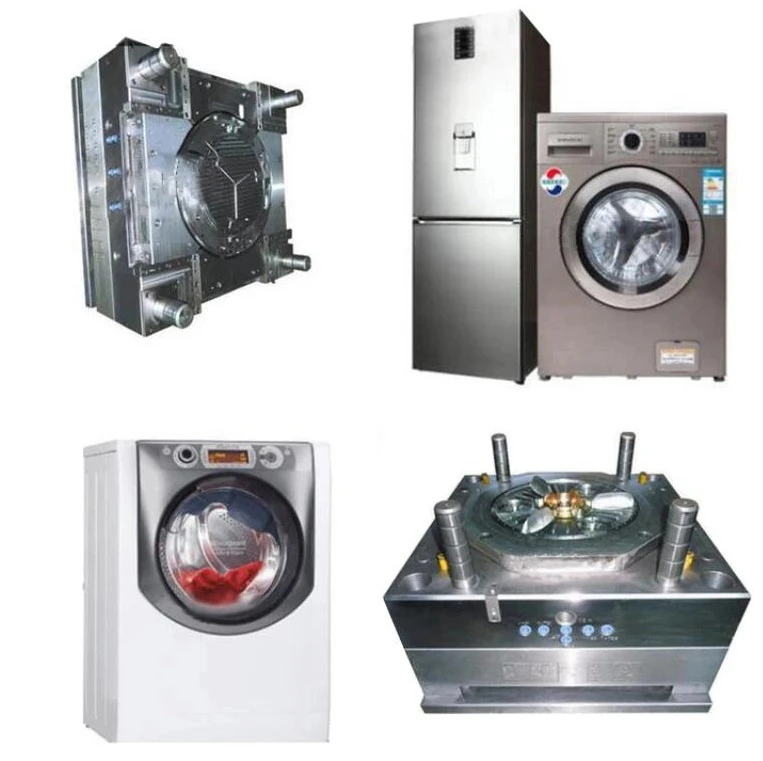

If you are searching for Washing Machine Injection Mould, pls contact Shuncheng mould, we are Injection Molding Manufacturer. Shuncheng mould has various sorts of Washing Machine Injection Moulds for sale.
Hot Tags: washing machine injection mould, China washing machine injection mould manufacturers, suppliers, factory
