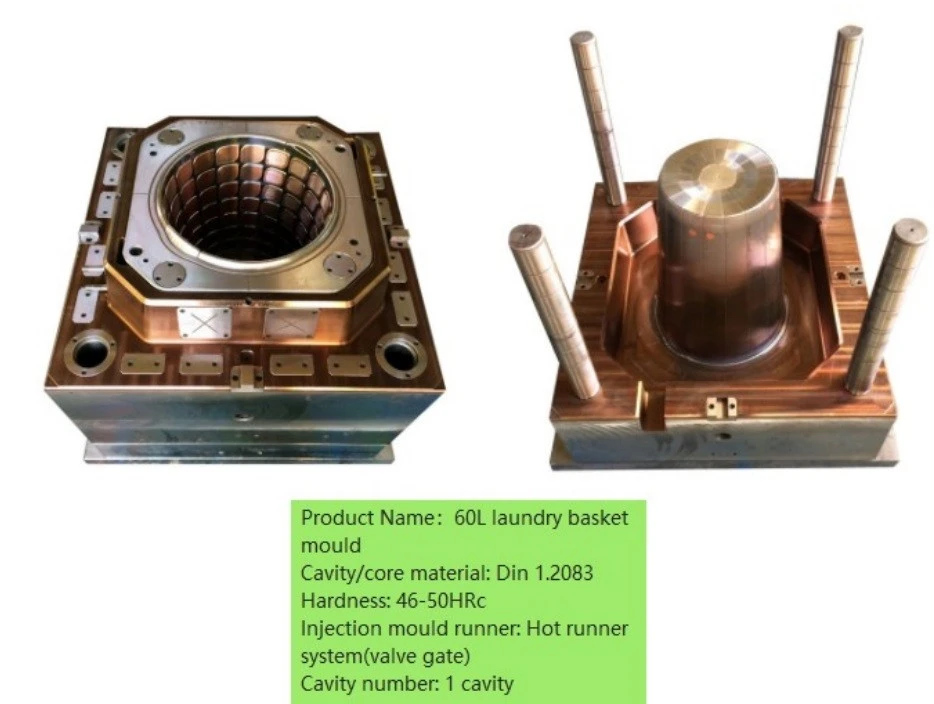

Product Name: 60L plastic laundry basket mould
Cavity/core material: Din 1.2083
Hardness: 46-50HRC
Injection mould runner: Hot runner system (valve gate)
Cavity number: 1 cavity
The manufacturing technique of 60L laundry basket mildew typically consists of the following steps:
1. Design stage
- Product analysis: According to the shape, size, shape and different necessities of the 60L laundry basket, the clothier makes use of expert layout software program (such as CAD, UG, ProE, etc.) to make a preliminary sketch of the mold. It is vital to reflect onconsideration on the use necessities of the laundry basket, such as whether or not constructions such as reinforcing ribs and handles are needed, and how these constructions are carried out in the mould design. At the equal time, analyze the look necessities of the laundry basket and decide the floor remedy approach of the mold.
- Mold go with the flow analysis: Use mildew float evaluation software program to simulate the injection molding manner and predict the float of plastic in the mold, filling time, strain distribution, temperature change, etc. Mold glide evaluation can optimize the gate position, runner design, cooling system, etc. of the mildew to make sure the easy development of the injection molding manner and enhance the exceptional and manufacturing effectivity of the product.
- Solution determination: According to the outcomes of product evaluation and mould drift analysis, the plan diagram of the mould is adjusted and optimized to decide the ultimate graph plan. The format sketch have to encompass specified facts such as the structure, size, material, and processing science of the mold.
2. Material preparation
- Steel selection: According to the use necessities and overall performance traits of the mold, pick out appropriate metal as the predominant fabric of the mold. Common mould steels encompass P20, 718H, H13, etc. These steels have accurate hardness, strength, put on resistance and toughness, and can meet the use necessities of the mold.
- Standard components procurement: Purchase preferred components required for the mold, such as screws, springs, information pillars, information sleeves, etc. The high-quality and precision of fashionable components without delay have an effect on the meeting accuracy and provider existence of the mold, so general components with dependable best and excessive precision have to be selected.
3. Processing stage
- Rough processing: Use slicing tools to reduce the metal into a difficult form and size, and then use milling machines, drilling machines and different tools for preliminary processing to eliminate extra substances and depart margins for subsequent fantastic processing.
- CNC processing (CNC processing): Install the rough-processed mould components on the CNC machining middle and operate specific processing in accordance to the necessities of the graph drawings. CNC processing can make certain the dimensional accuracy and floor excellent of mildew components and enhance processing efficiency.
- EDM: For some mildew components with complicated shapes, such as mould cavities and cores, EDM tools is required for processing. EDM makes use of the discharge corrosion between the electrode and the workpiece to dispose of the fabric on the workpiece to acquire the favored shape.
- Grinding: Grind the floor of the mould components to enhance the floor flatness and finish, make certain the meeting accuracy of the mildew and the floor best of the product.
4. Assembly stage
- Parts cleaning: Clean the processed mould components to get rid of oil, rust and impurities on the floor to make certain the floor cleanliness of the parts.
- Mold assembly: Assemble the mildew components in accordance to the necessities of the plan drawings. During the meeting process, pay interest to the set up order and function of the components to make sure the structural accuracy and meeting accuracy of the mold. At the identical time, the movable components of the mould must be debugged to make certain that they are bendy and reliable.
- Gap adjustment: Adjust the hole of the mold, inclusive of the hole between the cavity and the core, the hole between the slider and the information rail, etc. The dimension of the hole without delay impacts the injection molding first-rate and provider lifestyles of the mold, so it should be adjusted strictly in accordance to the plan requirements.
5. Debugging stage
- Mold trial: Install the assembled mould on the injection molding desktop for mould trial. During the mould trial, examine the operation of the mildew and take a look at the molding nice of the product, such as the dimensional accuracy, look quality, inner structure, etc. of the product.
- Problem evaluation and adjustment: According to the troubles observed for the duration of the mildew trial, such as product defects and mildew failures, analyze and diagnose, locate out the reasons of the problems, and take corresponding measures to alter and improve. It can also be crucial to alter the shape and procedure parameters of the mould till the fantastic of the product meets the requirements.
6. Acceptance stage
- Quality inspection: Conduct a complete inspection of the pleasant of the mold, which includes the dimensional accuracy, floor quality, meeting accuracy, and running overall performance of the mold. Professional trying out gear and equipment ought to be used throughout the inspection process, such as three-coordinate measuring instruments, hardness testers, measuring tools, etc.
- Delivery and use: Molds that have exceeded the first-class inspection can be delivered to clients for use. At the identical time, the consumer manual, preservation guide and different applicable data of the mildew have to be supplied to clients so that clients can use and keep the mould correctly.
