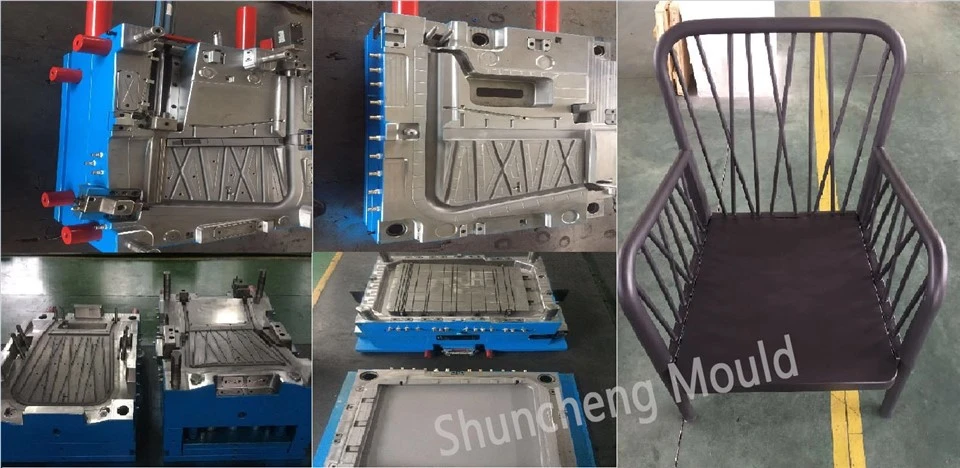

This Plastic chair mold customized by Turkish customers.
The predominant blessings of plastic chair molds consist of excessive precision, sturdiness and various designs. These blessings allow plastic chair molds to supply amazing merchandise and meet quite a number wishes at some stage in the manufacturing process.
First of all, the excessive precision of plastic chair molds is one of its foremost advantages. In the diagram and manufacturing procedure of the mold, superior CNC science and precision processing gear are used to make sure the excessive precision and balance of the mold. For example, Shuncheng Mold Company has a full set of processing equipment, consisting of high-speed milling machines and precision EDM equipment, which can make certain the accuracy of the mould to 0.1mm1. This high precision no longer solely improves the look high-quality of the product, however additionally ensures the dimensional consistency of the product.
Secondly, plastic chair molds have extraordinarily excessive durability. The mildew fabric typically makes use of super steel, such as 718 and Shanghai Baosteel P20 materials, which can now not solely enhance the lifestyles of the mold, however additionally amplify the floor gloss of the injection molded product and limit the technology of flash and burrs1. In addition, the uniformity and efficiency of the cooling device will be taken into account for the duration of the graph of the mould to make certain the steadiness and sturdiness of the mildew at some point of the working process.
Finally, the format of plastic chair molds is quite flexible. Mold designers can make quite a number designs in accordance to product requirements, inclusive of distinct demoulding slopes, gating gadget designs, and exhaust machine designs, etc., to meet the manufacturing wishes of a range of plastic chairs1. This graph flexibility is no longer solely relevant to distinct kinds of plastic chairs, such as injection molding chairs, blow molding chairs, etc., however additionally can personalize chairs of one of a kind shapes and sizes in accordance to patron wishes to meet the wants of particular places.
In summary, plastic matching chair molds supply a strong basis for the production of remarkable and assorted plastic chairs via their excessive precision, sturdiness and plan flexibility.
How Are Plastic Injection Molds Made?
Molds are constructed through two main methods: standard machining and electrical discharge machining(EDM).
Standard/CNC Machining
In its conventional form, standard machining requires the manual use of lathes, milling machines and drill presses. With advanced technology, CNC machining has become the predominant means of creating more complex and accurate molds, while still using standard machining methods. With CNC, computers are used to control the movement and operation of the mills, lathes, and other cutting machines.
In modern CNC systems, the mold design and manufacturing processes are both highly automated. The mold's mechanical dimensions are defined using computer-aided design (CAD) software, and then translated into manufacturing instructions by computer-aided manufacturing (CAM) software. "Post processor" software then transforms these instructions into the specific commands necessary for each machine used in creating the mold. The resulting commands are then loaded into the CNC machine.
Electrical Discharge Machining
Electrical discharge machining (EDM) has become widely used in mold making. EDM is a process in which a desired shape is obtained through the use of an electrode, which is fabricated out of graphite or copper. It is then mounted in an EDM machine and positioned over the workpiece, which is submerged in a dielectric fluid.
The electrode is then lowered to the workpiece. Then, using a controlled electrical source, the electrode is used to destroy and disperse the metal in the area opposite of the electrode. The electrode never contacts the workpiece. A spark gap of a few thousandths of an inch is always maintained between the electrode and workpiece. This process is a slower method of removing metal from a mold; however, the EDM process can produce shapes that are not possible with conventional CNC machining.
Another advantage of the EDM process is that it allows pre-hardened molds to be shaped and eliminates the need for additional heat-treating. At times, such as with speaker grille molds, the resulting fine EDM finish serves to be the final part finish without any polishing of the mold cavity.
Molds Design
The plastic injection mold consists of two primary components, the cavity half of the mold (A half) and the ejector half of the mold (B half). These mold halves are designed to work in conjunction as follows:
Plastic resin from the molding machine enters through a "sprue" or "gate" on the A half.
A sprue bushing seals tightly against the nozzle of the injection barrel of the molding machine. This allows the molten plastic to flow from the barrel into the mold (or "cavity").
The sprue bushing directs the molten plastic through channels (called "runners") that are machined into the faces of the A and B halves of the mold.
The molten plastic flows through the runner and enters one or more specialized gates and into the cavity to form the desired part.
A mold is usually designed so that the molded part reliably remains on the B half of the mold when it opens. The runner and the sprue are drawn out of the A half. The molded part then falls freely when ejected from the B half.
A single plastic injection mold can have one cavity, producing one part at a time, to multiple cavities for extremely high-production molds (like those for bottle caps) that can have 100 plus cavities.
Packaging & Delivery
Packaging Details:
1.Anti-rust oil
2.Plastic film
3.Wooden case
4.Or according to customer's requirement.
5.Port: Ningbo/Shanghai
6.Lead Time: 60 days

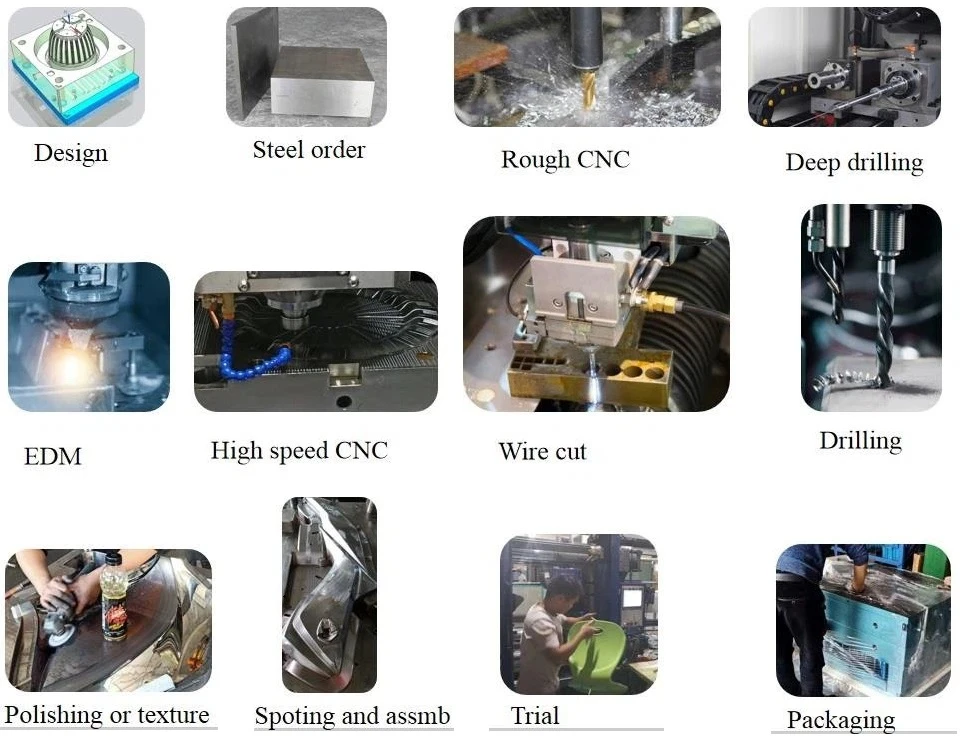

Order Manufacturing Process
