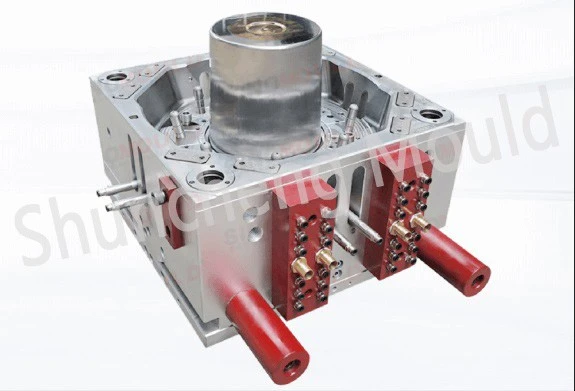

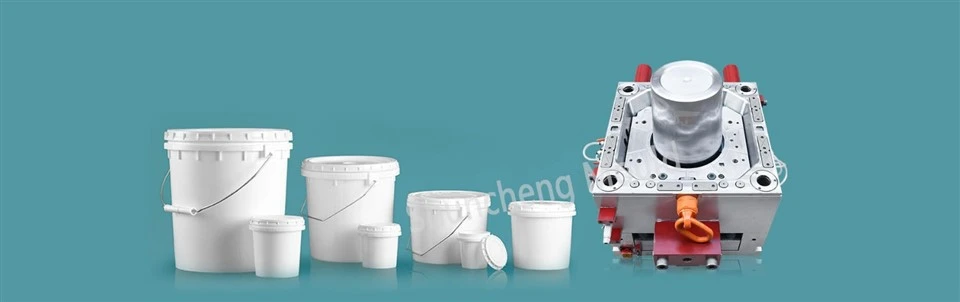

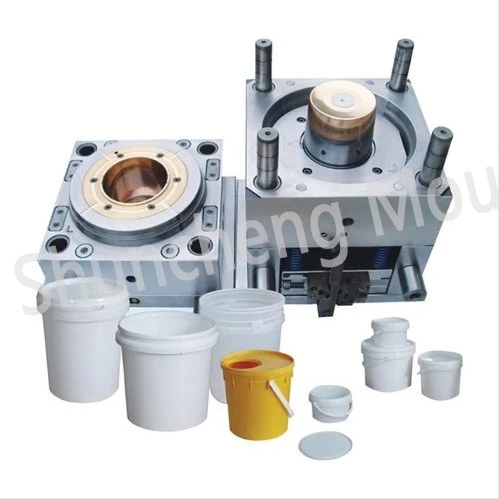

Various Sizes Plastic Paint Pail Injection Mold
Product description
Mould Name: Various Sizes Plastic Paint Pail Injection Mold
Mold material : 45 #, 2738, 2316, 718, 718H, P20, P20H, NAK80, 2344
Mold base: LKM, HASCO
Cavities :Multiple / Single
Runner: Hot runner / cold runner
Processing technology: EDM CNC grinding machine Lathe Drilling hole Polishing Wire cutting
logo :According to customer needs

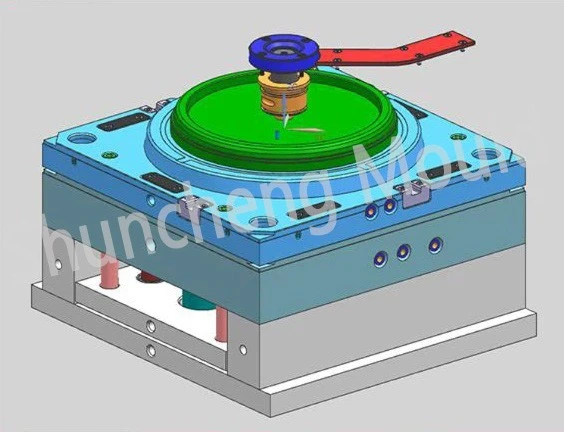

Design software: CAD UG PRO-E
Drawings:according to customer requirements
Hardness;35-55HRC
Mold life:100,000-1,000,000 times
Delivery time:15-45 days
Introduction to paint bucket mold：
1. Types of paint bucket molds
Paint bucket with slider, strong stripping paint bucket.
2. Ejection mechanism of paint bucket mold
Paint bucket with slider: When the mold thickness is sufficient, the outer design preferably adopts the inclined top structure design.
Strong stripping mold: When the stripping plate is inverted and there are deep ribs on the stripping plate, the inlay solves the deep rib processing problem. Two ejections are used, and the center ejects the product on the stripping plate
3. Component design of paint bucket mold

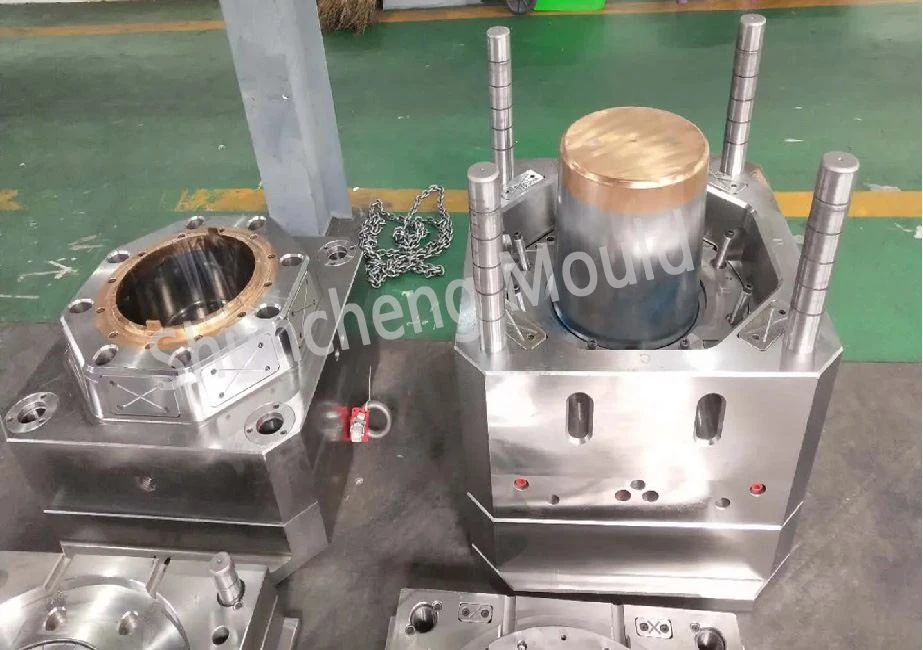

① Cavity bottom: The bottom of the bucket needs a certain thickness, the bottom is more than 45MM, and screws are added around it.
② Edge inlay: To ensure the strength of the ribs on the edge of the bucket, beryllium copper can be used for easy cooling.
③ Slider rib inlay method: oblique ribs and deep ribs exceeding 12MM need to be inlaid.
4. Selection of steel materials for paint bucket mold
Select high-quality steel materials such as P20, 718H, H13 and DIN1.2316 according to actual production requirements, and insert copper beryllium in the bottom area and the edge rib area.
5. Paint bucket mold injection molding system
There are cold runners, hot runners, hot runner needle valves, etc. Small-capacity buckets can use hot runners, and 10~15L can use hot runner needle valve gates.
6. Interchangeable mold design
The paint bucket lid and handle inserts are interchangeable to reduce costs.
Packaging & Delivery
Packaging Details:
1. Anti-rust oil
2. Plastic film
3. Wooden case
4. Or according to customer's requirement.
5.Port:Ningbo/Shanghai
6.Lead Time :
