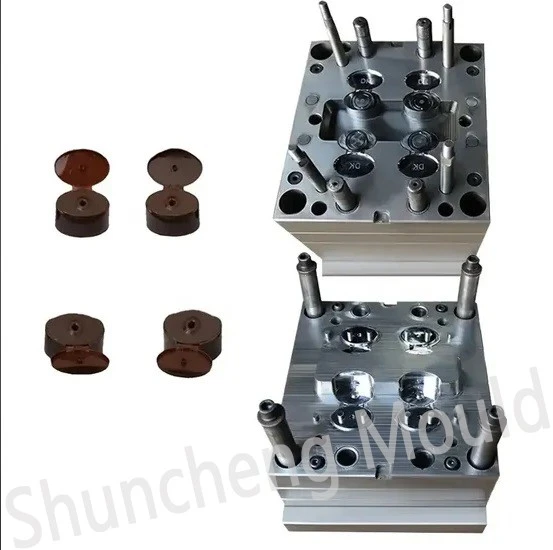

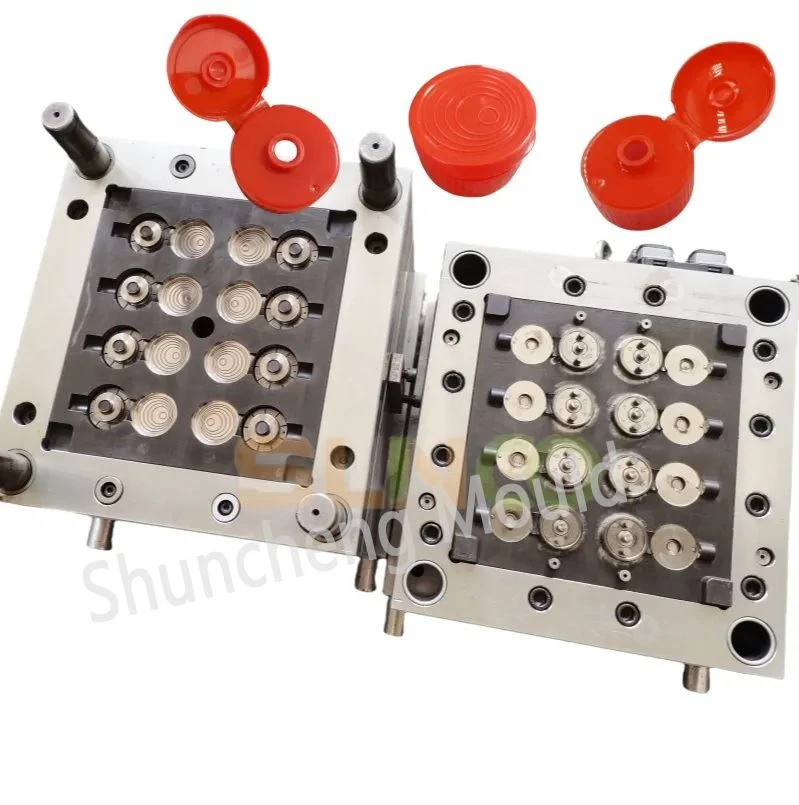

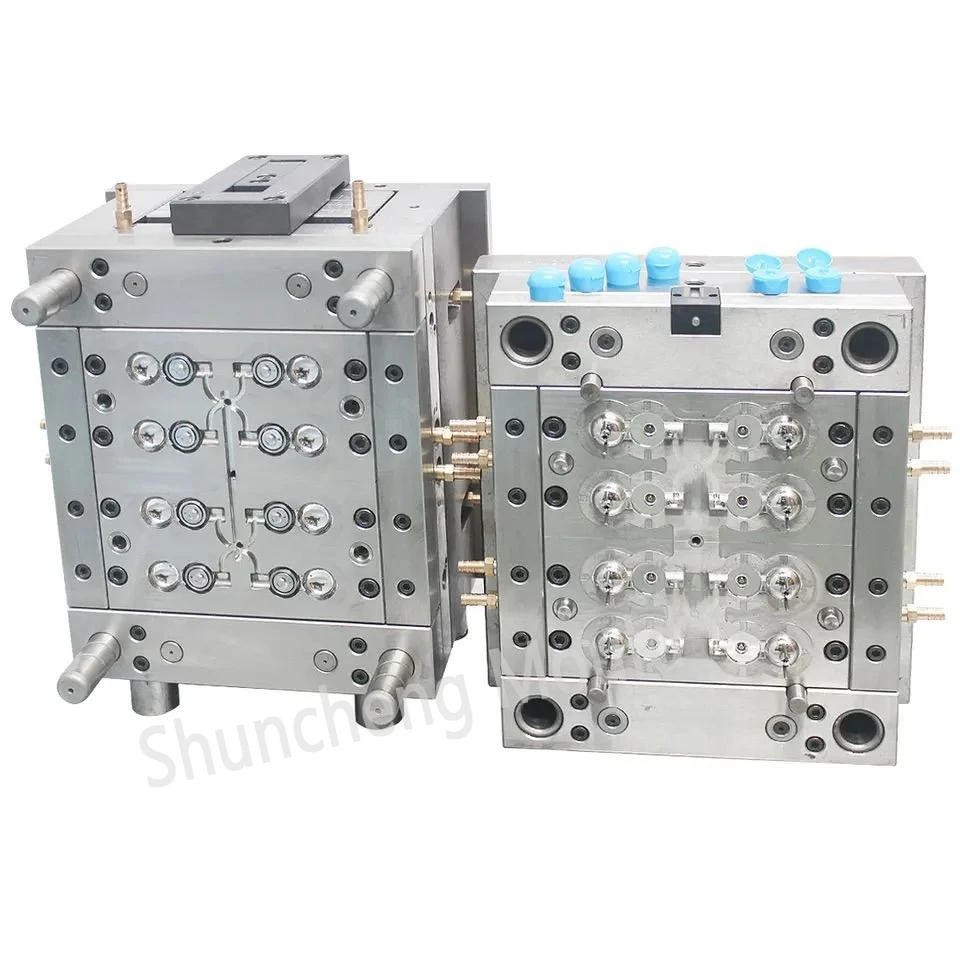

Plastic Flip Top Cap Mould

1). Basic structure of plastic flip cap mold

Plastic bottle cap mold is a kind of precision mechanical equipment, and its basic structure usually includes the following parts:

1. Molding part: mainly includes core, cavity, insert and other parts, which are used to mold various shapes and sizes of plastic bottle caps.

2. Casting system: mainly composed of gate, sprue, branch runner, etc., used to introduce molten plastic into the cavity.

3. Cooling system: mainly cooling by cooling pipes and water jackets to ensure the molding quality of plastic bottle caps.

4. Ejection system: used to eject the plastic bottle cap from the core after molding for subsequent operations.

5. Control and operation system: mainly used to control the various actions and operation processes of the mold.

2). Basic process of plastic flip cap mold design

The basic process of plastic bottle cap mold design mainly includes the following steps:

1. Determine the design goal: clarify the functional goal of mold design according to user needs and product requirements.


2. Collect and analyze data: collect and analyze the shape, size, material and other data of the bottle cap to provide a basis for mold design.


3. Scheme design: formulate a corresponding mold design scheme based on the collected data and design goals.

4. CAD drawing: draw the various components of the mold through CAD software, and assemble and debug them.

5. CAM processing: use CAM software to perform CNC processing on the mold to produce the entities of each component.

6. Assembly and debugging: assemble the components together and debug them to ensure the normal operation of the mold.


7. Inspection and acceptance: perform performance inspection and acceptance on the mold, and it can be put into production only after passing the inspection.

Packaging & Delivery
Packaging Details:
1.Anti-rust oil
2.Plastic film
3.Wooden case
4.Or according to customer's requirement.
5.Port: Ningbo/Shanghai
6.Lead Time: 60 days
