Car Front Bumper Mold
The production process of the front bumper mold of the car mainly includes the following steps:
Design stage: First, according to the requirements of the car design, the designer will draw a three-dimensional model of the bumper. This model needs to reflect the shape, size and functional requirements of the bumper in detail. After the design is completed, the model will be converted into a CAD drawing for subsequent processing and manufacturing.

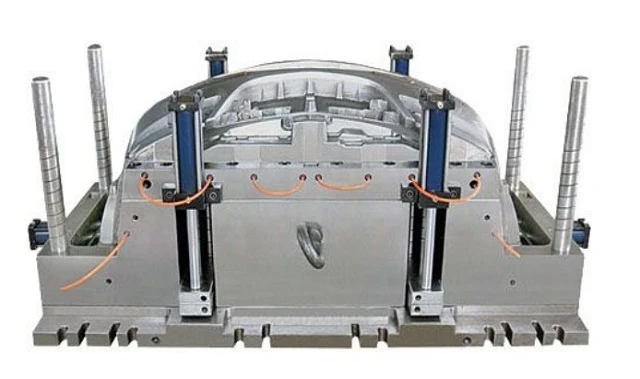

Mold manufacturing: The manufacturing of the mold is a key link in the production of the bumper. The mold consists of multiple parts, including the cavity, core, pouring system, cooling system, etc. During the manufacturing process, high-precision machine tools are required for processing to ensure the accuracy and surface quality of the mold. The material of the mold is usually selected from high-strength alloy steel to ensure its durability and precision.
Injection molding: After the mold is manufactured, the plastic particles are heated and melted and then injected into the mold cavity. The plastic cools and solidifies in the mold to form the required bumper blank. This process needs to be carried out under high temperature and high pressure to ensure that the plastic fully fills the mold and forms the desired shape.

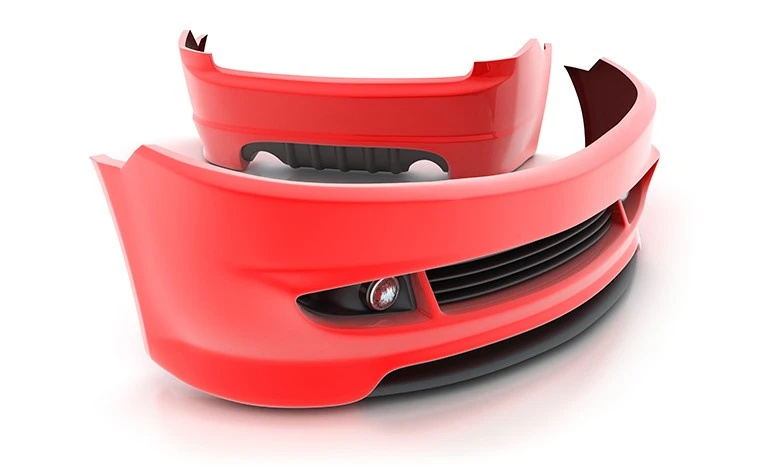

Post-processing: The injection molded bumper blank needs to be post-processed, including finishing, grinding and painting. Trimming is to remove burrs and excess material, while grinding is to make the surface smooth. Finally, painting gives the bumper the desired color and gloss.
Specific types and functions of bumper molds:
Undercut demoulding device: This mold is designed to smoothly remove the snap-on structure after injection molding when the mold is opened to ensure the integrity of the bumper. The undercut assembly abuts against the side wall of the large top block through the slide rail assembly to form a complete injection core.
Inclined top mold: The inclined top assembly includes a first inclined top and a second inclined top that abut against each other and form an angle in the demoulding direction. This design can avoid interference with the flange during demoulding and achieve smooth demoulding.
Through the above steps and designs, the production process of the front bumper mold of the car is completed, ensuring that the quality and function of the bumper meet the design and safety requirements of the car.
If you are searching for Auto Parts Car Front Bumper Mold Plastic Injection Mold, pls contact Shuncheng mould, we are Injection Molding Manufacturer. Shuncheng mould has various sorts of Auto Parts Car Front Bumper Mold Plastic Injection Molds for sale.
